Azure Virtual Machine Scale Sets (VMSS) help you deploy and manage identical VMs that auto-scale based on demand. In this guide, we’ll:

✅ Create a VM Scale Set in Azure

✅ Connect via SSH

✅ Install and Test Nginx (a lightweight web server)

Perfect for beginners! Let’s get started.

Step 1: Create a VM Scale Set in Azure

1. Log in to Azure Portal : Go to portal.azure.com and sign in.

2. Create a VM Scale Set

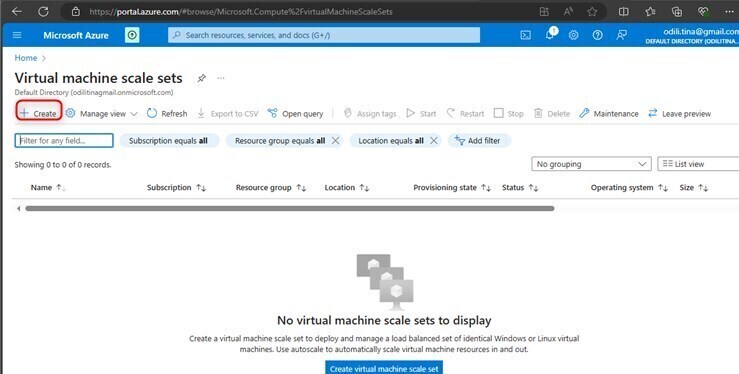

Click "Create a resource" > Search for "Virtual Machine Scale Set" > Create.

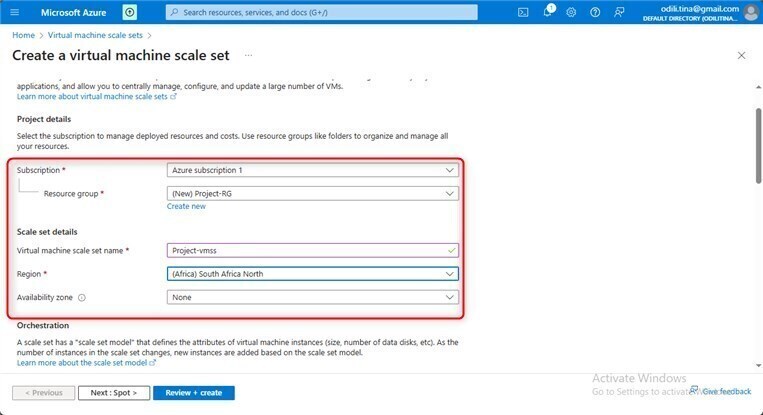

Fill in the details:
- Resource Group: Create new (e.g., my-vmss-rg).
- Name: Add a name.(e.g,my-vmss)
- Region:Select a Region that is close to your area (East US).

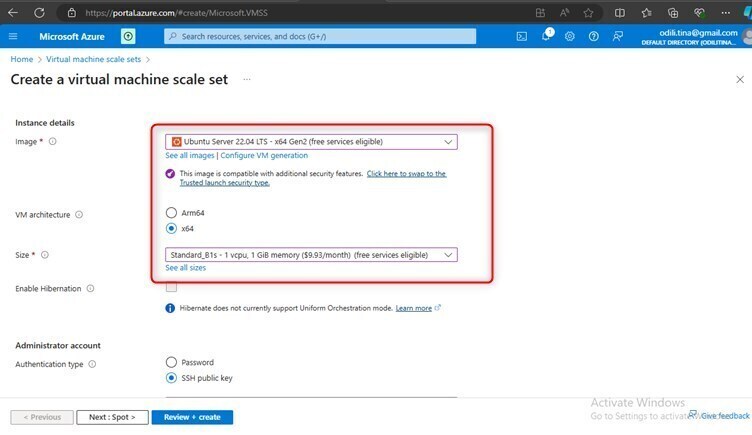

Image: Ubuntu Server 22.04 LTS
Size: Standard_B1s (cheap for testing)

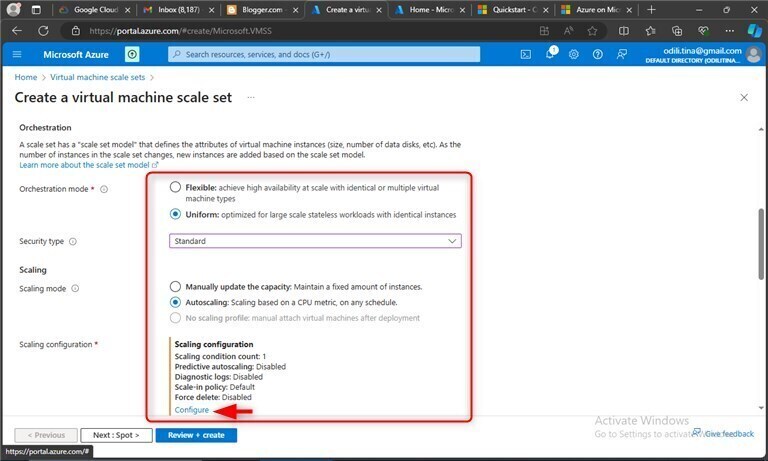

Orchestration mode: Select Uniform.
Security type: Select Standard.
Scaling mode: Choose the Autoscaling option.

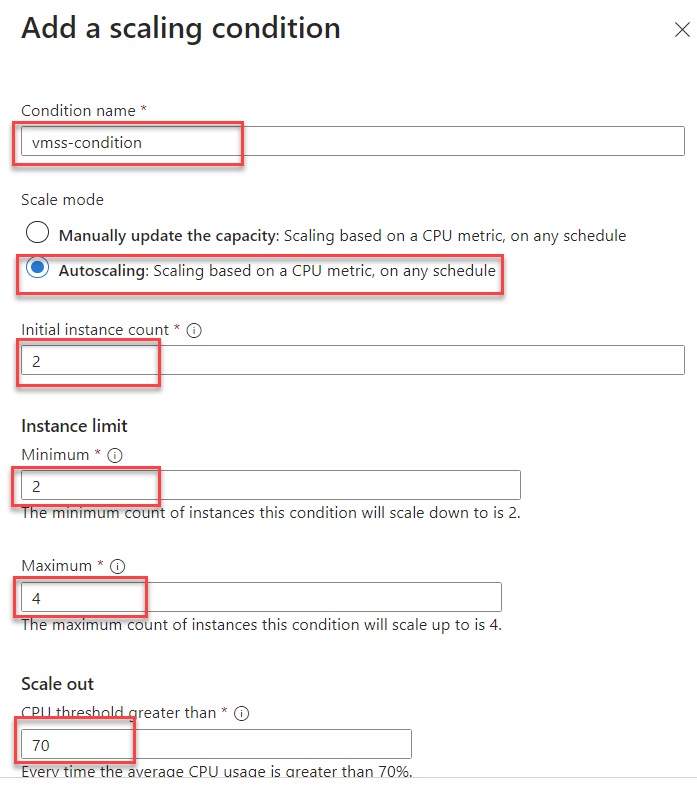

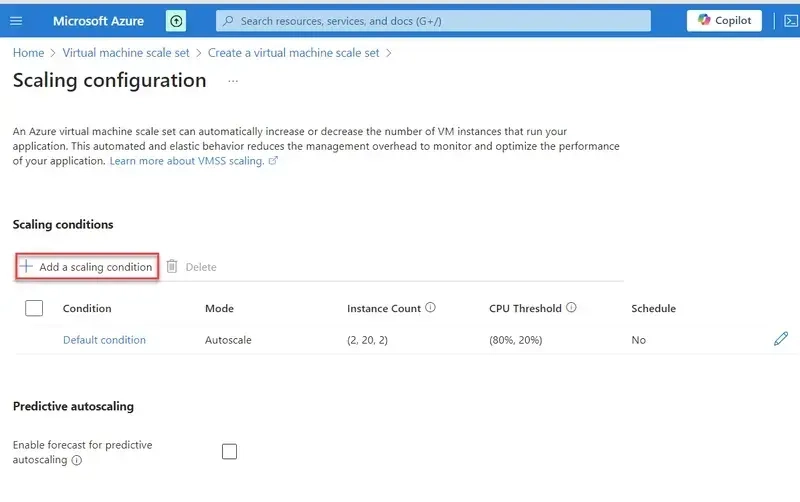

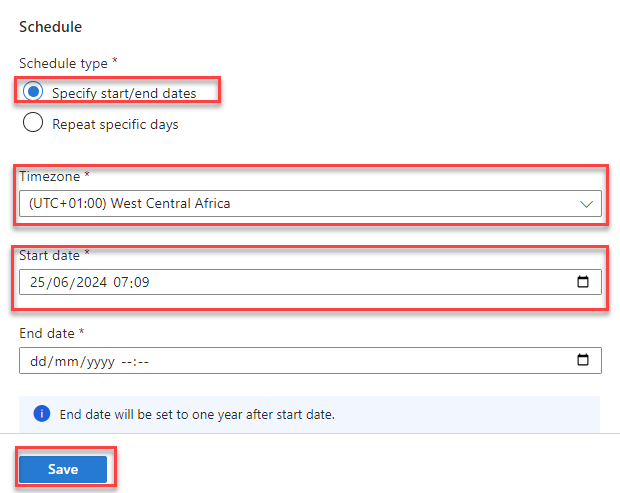

3. Configure Scaling.

Instance count: Start with 2 VMs.

Scaling policy: Manual (or set auto-scaling rules later).

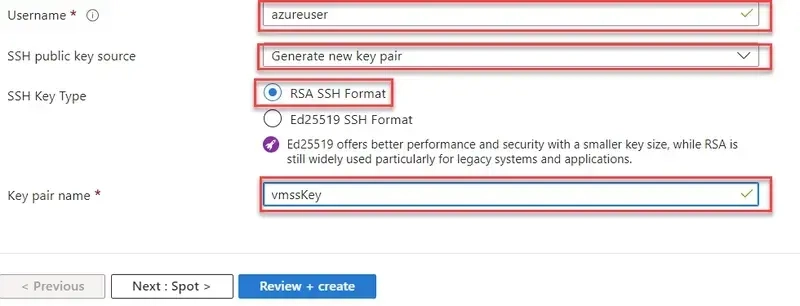

4. Add SSH Authentication

Authentication type: SSH public key.
Username: azureuser
SSH public key: Paste your key (or generate one).
Enter the Key pair name.

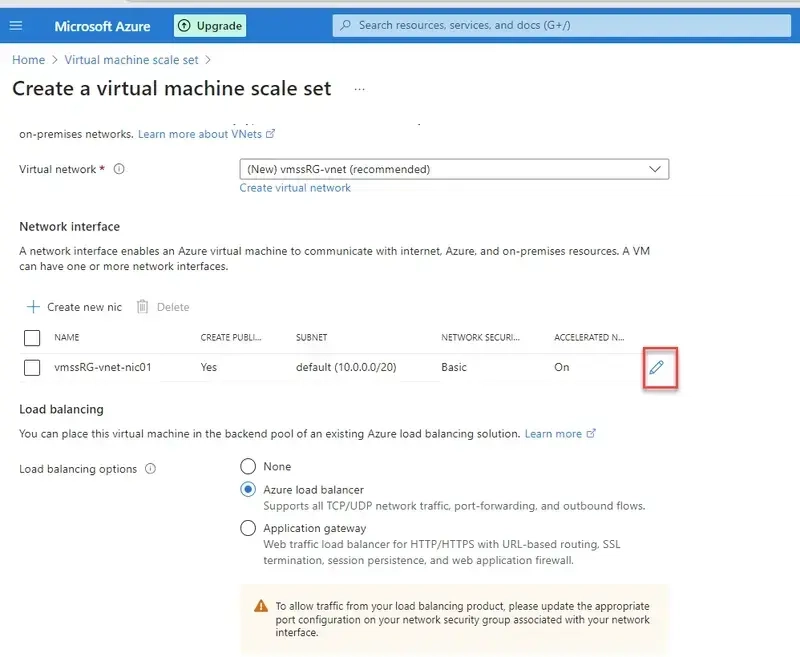

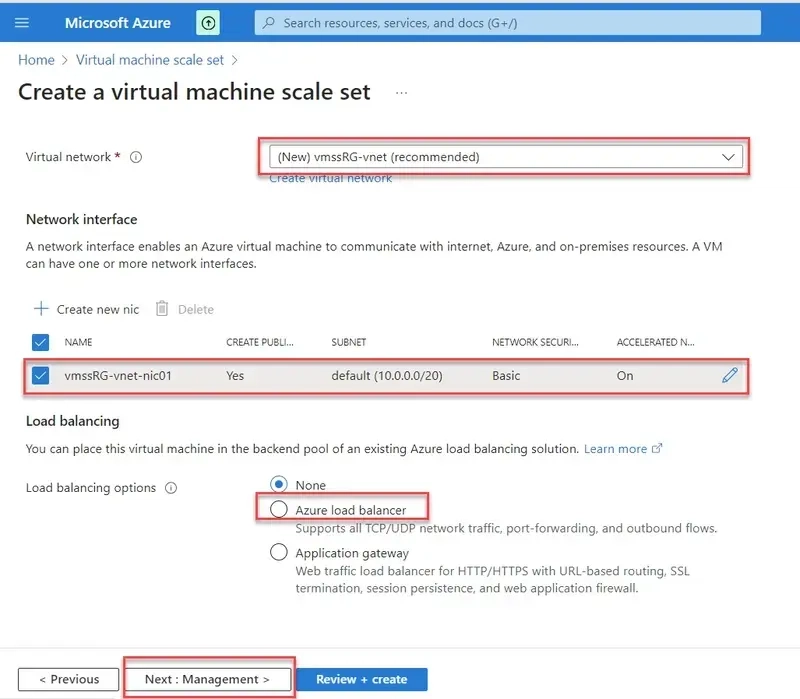

5. Network Configuration

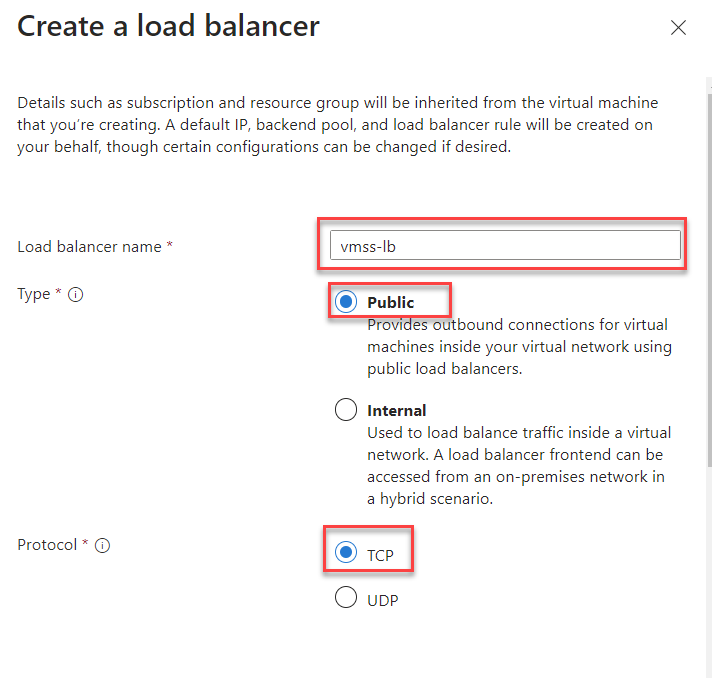

Set the load balancer,choose a type.

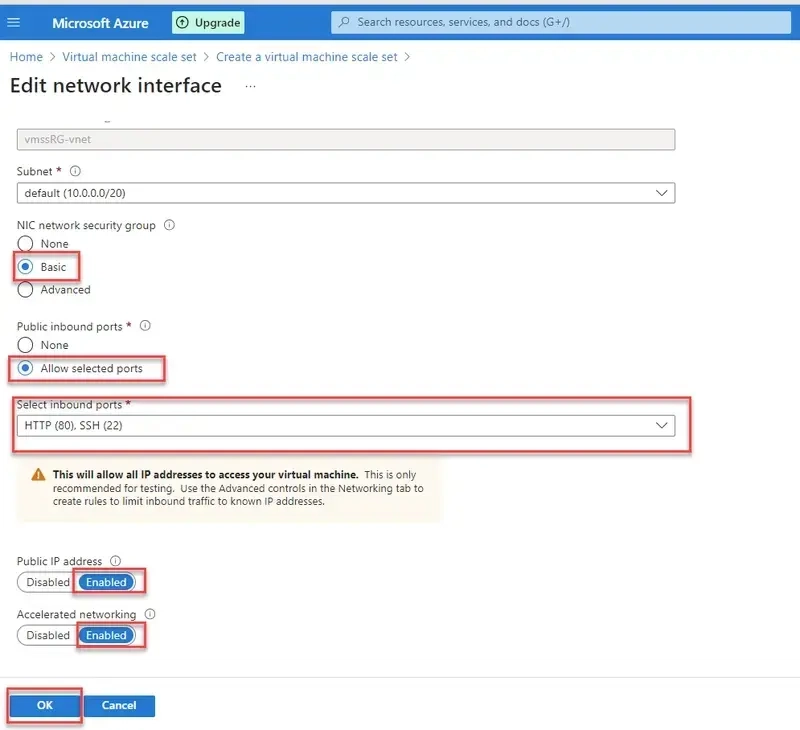

Create a Network Interface.

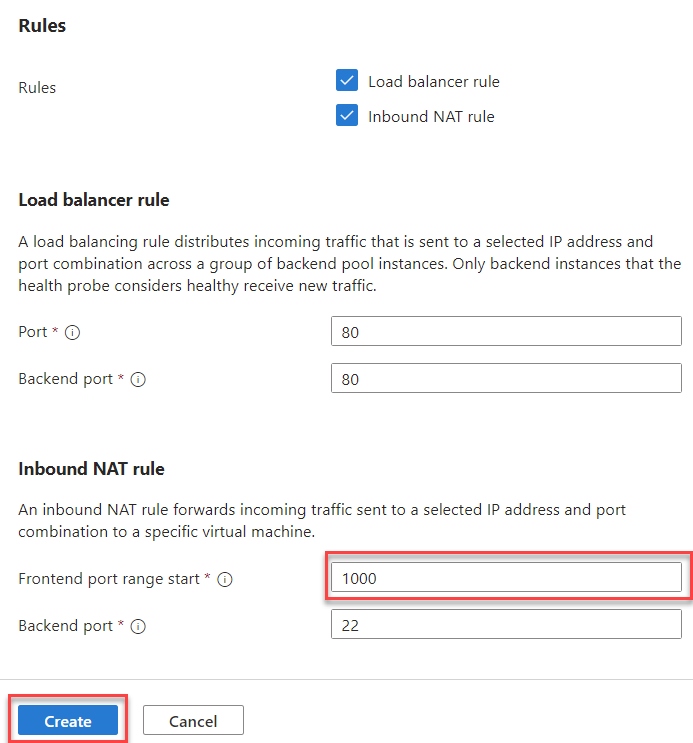

Allow inbound SSH (port 22) and HTTP (port 80).

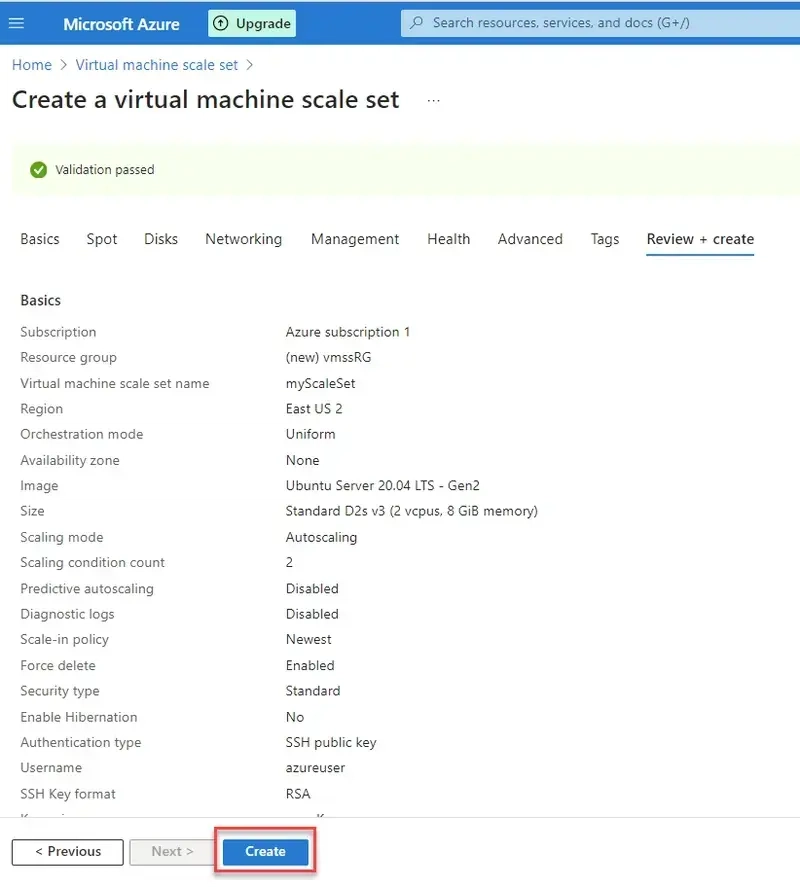

6. Review & Deploy

Click Review + Create > Create.

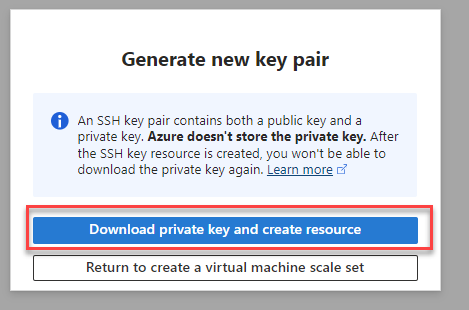

Select the Download private key and create Resource.

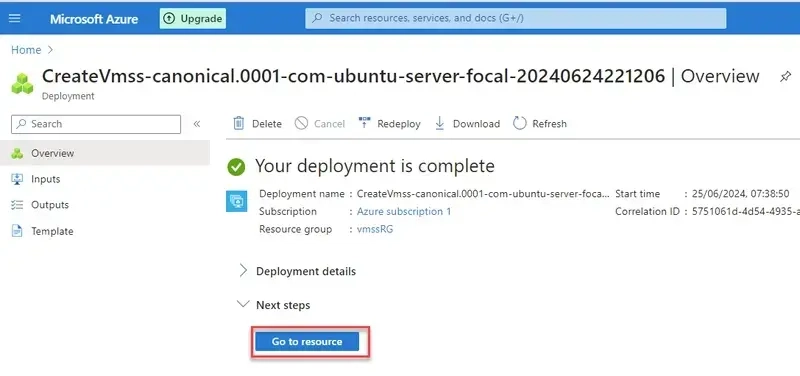

After the deployment is completed, click on the Go to resource.

Step 2: Connect via SSH & Install Nginx

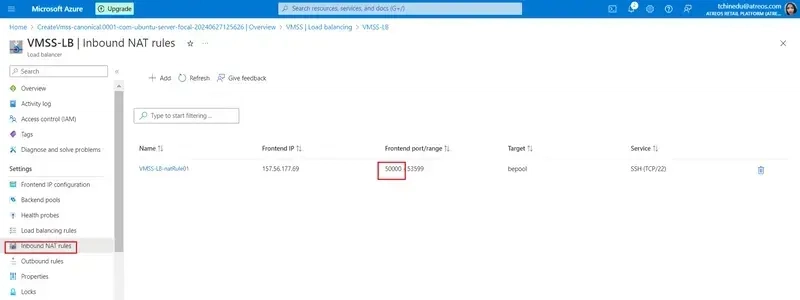

1. Find the Public IP

Go to your VMSS > Networking > Check the Load Balancer’s Public IP.

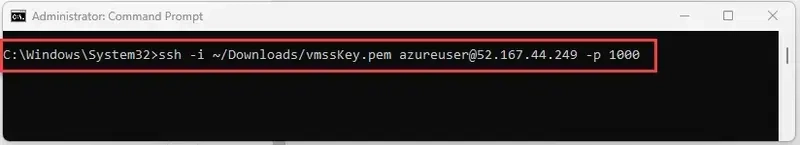

2. SSH into a VM Instance

Open Terminal (Linux/macOS) or PowerShell (Windows) and run:

ssh -i ~/.ssh/your_private_key azureuser@

(Replace your_private_key and with your details.)

3. Install Nginx

Once logged in, run:

sudo apt update && sudo apt install nginx -y

4. Verify Nginx is Running

sudo systemctl status nginx

(You should see active (running).)

5. Test in Browser

Open a browser and enter the Public IP of your VMSS.
You should see the Nginx welcome page!
