How to set named control remotely in q-sys designer

Short description how to set named control value remotely from the same network.

Add Block Controller
Add new control
Move control to Named Controls section
Get NamedControl ID from .xml file (Tools -> Extract Named Controls)

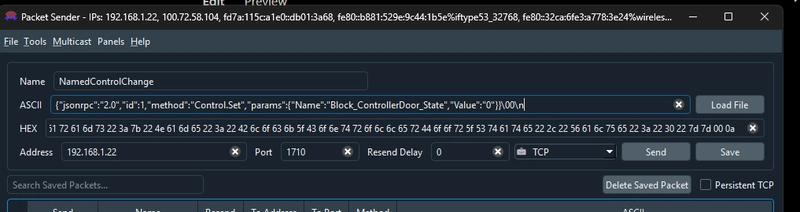

Send JSON-RPC to 1710 port

{
"jsonrpc":"2.0",
"id":1,
"method":"Control.Set",
"params":{
"Name":"Block_ControllerDoor_State",
"Value":"0"
}
}

example success response:

{
"jsonrpc":"2.0",
"method":"EngineStatus",
"params":{
"Platform":"Emulator",
"State":"Active",
"DesignName":"DesignName",
"DesignCode":"DesignCode",
"IsRedundant":false,
"IsEmulator":true,
"Status":{
"Code":0,
"String":"OK - 2 OK"
}

}
}
