Setup Stacked Topology High availability clusters using kubeadm steps: to High availability clusters deploy infrastructure at aws for self hosted kubernetes cluster vpc1=77.132.0.0/16 and integrate with internet gateway 3 public subnet for each Azs cidrblock will be at range 77.132.100.0/24, 77.132.101.0/24,77.132.102.0/24 3 private subnet for each Azs cidrblock will be at range 77.132.103.0/24 , 77.132.104.0/24 , 77.132.105.0/24 5 . associate routetable with public subnets associate per routetable that have route to outside by Nat gateways with each private subnet deploy network load balancer which have target registered with public subnets deploy 3 security groups for load balancer , control plane nodes , worker nodes use session manager for access the all nodes by adding a iam role and have permission . deploy ec2 autoscaling for control plane and worker nodes to deploy high availability clusters : require to have 3 control plane nodes which give beneficial performance and role decision to whom be master 2 . following formula of Quarom= N/2+1 which N=No.of control plane node ex 3/2+1 = 2 meaning the minimum to consider it Healthy at 2 control plane node are ready for role decision and preemption to setup High availability control plane : disable swap 2, update kernel params install container runtime ,containerd install runc install cni pluging install kubeadm ,kubelet , kubectl optional check version of kubeadm , kubelet,kubectl initialize the control plane with kubeadm sudo kubeadm --control-plane-endpoint “Load-Balancer-DNS:6443” --pod-network-cidr 192.168.0.0/16 --upload-certs optional[--node-name master1 ] install calico cni pluging 3.29.3 when you join other control plane node , use sudo kubeadm join mylb-b12f4818ac02ac54.elb.us-east-1.amazonaws.com:6443 --token wme2w0.ft4sn3x0tc2035bu \ --discovery-token-ca-cert-hash sha256:a4e516c840d20093ef2262c57b3afb171be07cf0ec0514de8198b91f46418b36 \ --control-plane --certificate-key 403d1068384eebe16c1a50fc25e81b24ac7ccef26423244af9e1966e80531f9b --node-name Note: give name for node using --node-name setup worker nodes disable swap 2, update kernel params install container runtime ,containerd install runc install cni pluging install kubeadm ,kubelet , kubectl optional check version of kubeadm , kubelet,kubectl copy kubeconfig from controlplane node to worker node kubeconfig sudo kubeadm join mylb-b12f4818ac02ac54.elb.us-east-1.amazonaws.com:6443 --token wme2w0.ft4sn3x0tc2035bu \ --discovery-token-ca-cert-hash sha256:a4e516c840d20093ef2262c57b3afb171be07cf0ec0514de8198b91f46418b36 --node-name if forget or missing token output when kubeadm bootstraps finish sudo kubeadm token --print-join-command master.sh #!/bin/bash disable swap sudo swapoff -a sudo sed -i '/ swap / s/^(.)$/#\1/g' /etc/fstab update kernel params cat .bashrc && source .bashrc master-ha1.sh !/bin/bash disable swap sudo swapoff -a sudo sed -i '/ swap / s/^(.)$/#\1/g' /etc/fstab update kernel params cat .bashrc && source .bashrc master-ha2.sh #!/bin/bash disable swap sudo swapoff -a sudo sed -i '/ swap / s/^(.)$/#\1/g' /etc/fstab update kernel params cat .bashrc && source .bashrc for worker nodes worker1.sh !/bin/bash disable swap sudo swapoff -a sudo sed -i '/ swap / s/^(.)$/#\1/g' /etc/fstab update kernel params cat .bashrc && source .bashrc worker2.sh !/bin/bash disable swap sudo swapoff -a sudo sed -i '/ swap / s/^(.)$/#\1/g' /etc/fstab update kernel params cat .bashrc && source .bashrc worker3.sh #!/bin/bash disable swap sudo swapoff -a sudo sed -i '/ swap / s/^(.)$/#\1/g' /etc/fstab update kernel params cat .bashrc && source .bashrc Note: remember to copy kubeconfig from control plane to worker nodes kubeconfig to deploy infrastructure using by pulumi python and using pulumi esc to store key/value """An AWS Python Pulumi program""" import pulumi , pulumi_aws as aws , json import pulumi cfg1=pulumi.Config() vpc1=aws.ec2.Vpc( "vpc1", aws.ec2.VpcArgs( cidr_block=cfg1.require(key="block1"), tags={ "Name" : "vpc1" } ) ) intgw1=aws.ec2.InternetGateway( "intgw1", aws.ec2.InternetGatewayArgs( vpc_id=vpc1.id, tags={ "Name" : "intgw1" } ) ) zones=["us-east-1a", "us-east-1b" , "us-east-1c"] cidr1=cfg1.require(key="cidr1") cidr2=cfg1.require(key="cidr2") cidr3=cfg1.require(key="cidr3") cidr4=cfg1.require(key="cidr4") cidr5=cfg1.require(key="cidr5") cidr6=cfg1.require(key="cidr6") pubsubnets=[cidr1,cidr2,cidr3] privsubnets=[cidr4,cidr5,cidr6] pubnames=["pub1" , "pub2" , "pub3" ] privnames=[ "priv1" , "priv2" , "priv3" ] for allpub in range(len(pubnames)): pubnames[allpub]=aws.ec2.Subnet( pubnames[allpub], aws.ec2.SubnetA

Apr 18, 2025 - 03:17

Setup Stacked Topology High availability clusters using kubeadm

steps: to High availability clusters

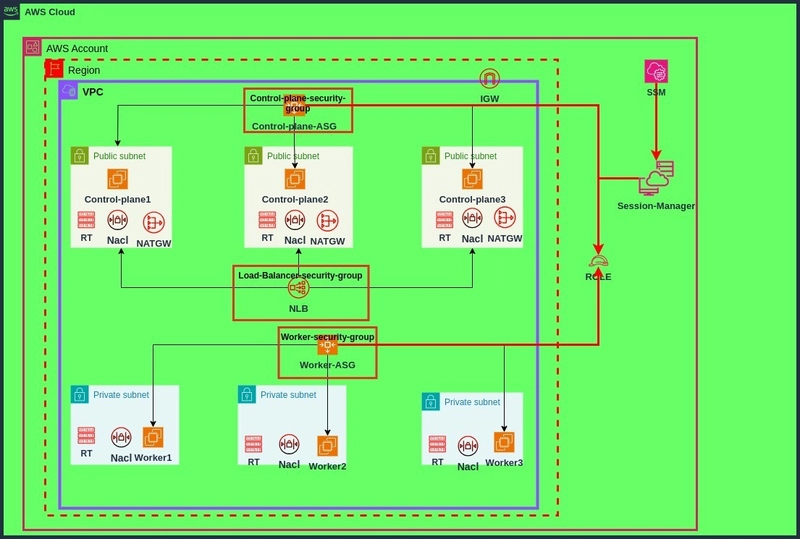

deploy infrastructure at aws for self hosted kubernetes cluster
vpc1=77.132.0.0/16 and integrate with internet gateway
3 public subnet for each Azs cidrblock will be at range 77.132.100.0/24, 77.132.101.0/24,77.132.102.0/24
3 private subnet for each Azs cidrblock will be at range 77.132.103.0/24 , 77.132.104.0/24 , 77.132.105.0/24 5 . associate routetable with public subnets
associate per routetable that have route to outside by Nat gateways with each private subnet
deploy network load balancer which have target registered with public subnets
deploy 3 security groups for load balancer , control plane nodes , worker nodes
use session manager for access the all nodes by adding a iam role and have permission .
deploy ec2 autoscaling for control plane and worker nodes

to deploy high availability clusters :

require to have 3 control plane nodes which give beneficial performance and role decision to whom be master
2 . following formula of Quarom= N/2+1 which N=No.of control plane node
ex 3/2+1 = 2 meaning the minimum to consider it Healthy at 2 control plane node are ready for role decision and preemption
to setup High availability control plane :
disable swap
2, update kernel params
install container runtime ,containerd
install runc
install cni pluging
install kubeadm ,kubelet , kubectl
optional check version of kubeadm , kubelet,kubectl
initialize the control plane with kubeadm

sudo kubeadm --control-plane-endpoint “Load-Balancer-DNS:6443” --pod-network-cidr 192.168.0.0/16 --upload-certs optional[--node-name master1 ]

install calico cni pluging 3.29.3
when you join other control plane node , use

sudo kubeadm join mylb-b12f4818ac02ac54.elb.us-east-1.amazonaws.com:6443 --token wme2w0.ft4sn3x0tc2035bu \
--discovery-token-ca-cert-hash sha256:a4e516c840d20093ef2262c57b3afb171be07cf0ec0514de8198b91f46418b36 \
--control-plane --certificate-key 403d1068384eebe16c1a50fc25e81b24ac7ccef26423244af9e1966e80531f9b --node-name

Note: give name for node using --node-name

setup worker nodes
disable swap 2, update kernel params
install container runtime ,containerd
install runc
install cni pluging
install kubeadm ,kubelet , kubectl
optional check version of kubeadm , kubelet,kubectl
copy kubeconfig from controlplane node to worker node kubeconfig

if forget or missing token output when kubeadm bootstraps finish

sudo kubeadm token --print-join-command

master.sh

#!/bin/bash

disable swap

sudo swapoff -a
sudo sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

update kernel params

cat < overlay
br_netfilter
EOF
sudo modprobe overlay
sudo modprobe br_netfilter
cat < net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1
EOF
sudo sysctl --system

install container runtime ,containerd

curl -LO https://github.com/containerd/containerd/releases/download/v2.0.4/containerd-2.0.4-linux-amd64.tar.gz

sudo tar Cxzvf /usr/local containerd-2.0.4-linux-amd64.tar.gz

curl -LO https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

sudo mkdir -p /usr/local/lib/systemd/system/
sudo mv containerd.service /usr/local/lib/systemd/system/
sudo mkdir -p /etc/containerd
sudo containerd config default | sudo tee /etc/containerd/config.toml
sudo sed -i 's/SystemdCgroup = false/SystemdCgroup = true/g' /etc/containerd/config.toml

sudo systemctl daemon-reload
sudo systemctl enable containerd --now

install runc

curl -LO https://github.com/opencontainers/runc/releases/download/v1.1.12/runc.amd64

sudo install -m 755 runc.amd64 /usr/local/sbin/runc

install cni

curl -LO "https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz"

sudo mkdir -p /opt/cni/bin

sudo tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.6.2.tgz

install kubeadm, kubelet, kubectl

sudo apt-get update -y
sudo apt-get install -y apt-transport-https ca-certificates curl gpg
curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.32/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.32/deb/ /' | sudo tee /etc/apt/sources.list.d/kubernetes.list
sudo apt-get update -y
sudo apt-get install -y kubelet kubeadm kubectl
sudo apt-mark hold kubelet kubeadm kubectl

kubeadm version
kubelet --version
kubectl version --client

initial kubeadm for Ha cluster

sudo kubeadm init --control-plane-endpoint mylb-030c3a1c6c4fae6a.elb.us-east-1.amazonaws.com:6443 --pod-network-cidr 192.168.0.0/16 --upload-certs --node-name master1

configure crictl to work with containerd

sudo crictl config runtime-endpoint: unix:///run/containerd/containerd.sock
sudo chown $(id -u):$(id -g) /var/run/containerd

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

This command changes the ownership of the Kubernetes admin configuration file

- $(id -u) gets the current user's ID number

- $(id -g) gets the current user's group ID number

- /etc/kubernetes/admin.conf is the Kubernetes admin config file containing cluster credentials

- chown changes the owner and group of the file to match the current user

This allows the current user to access the Kubernetes cluster without needing sudo

sudo chown $(id -u):$(id -g) /etc/kubernetes/admin.conf

export KUBECONFIG=/etc/kubernetes/admin.conf

install calico cni plugin 3.29.3

kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v3.29.3/manifests/tigera-operator.yaml

curl -o custom-resources.yaml https://raw.githubusercontent.com/projectcalico/calico/v3.29.3/manifests/custom-resources.yaml

kubectl create -f custom-resources.yaml

alias kubectl utility

alias k=kubectl > .bashrc && source .bashrc

master-ha1.sh

!/bin/bash

disable swap

sudo swapoff -a
sudo sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

update kernel params

install container runtime ,containerd

curl -LO https://github.com/containerd/containerd/releases/download/v2.0.4/containerd-2.0.4-linux-amd64.tar.gz

sudo tar Cxzvf /usr/local containerd-2.0.4-linux-amd64.tar.gz

curl -LO https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

sudo systemctl daemon-reload
sudo systemctl enable containerd --now

install runc

curl -LO https://github.com/opencontainers/runc/releases/download/v1.1.12/runc.amd64

sudo install -m 755 runc.amd64 /usr/local/sbin/runc

install cni

curl -LO "https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz"

sudo mkdir -p /opt/cni/bin

sudo tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.6.2.tgz

install kubeadm, kubelet, kubectl

kubeadm version
kubelet --version
kubectl version --client

initial kubeadm for Ha cluster

sudo kubeadm join mylb-030c3a1c6c4fae6a.elb.us-east-1.amazonaws.com:6443 --token 236pfl.0f9p8r06gcmfmj7p \
--discovery-token-ca-cert-hash sha256:992eb054da8690fbfc3ccbf2b0b30e5ce323c6b3444b3f11724dafa072e5f45a \
--control-plane --certificate-key 3fb4811956c257fd5407fb6aafd099077eb66a2da357683447b1b186d4dd890c --node-name master2

sudo kubeadm join mylb-b12f4818ac02ac54.elb.us-east-1.amazonaws.com:6443 --token wme2w0.ft4sn3x0tc2035bu \

--discovery-token-ca-cert-hash sha256:a4e516c840d20093ef2262c57b3afb171be07cf0ec0514de8198b91f46418b36 \

--control-plane --certificate-key 403d1068384eebe16c1a50fc25e81b24ac7ccef26423244af9e1966e80531f9b --node-name master2

configure crictl to work with containerd

sudo crictl config runtime-endpoint: unix:///run/containerd/containerd.sock
sudo chown $(id -u):$(id -g) /var/run/containerd

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
sudo chown $(id -u):$(id -g) /etc/kubernetes/admin.conf

export KUBECONFIG=/etc/kubernetes/admin.conf

Note:
when join other control plane node , no need to install calico cni 2.29.3 , automatically installed

alias kubectl utility

alias k=kubectl > .bashrc && source .bashrc

master-ha2.sh

#!/bin/bash

disable swap

sudo swapoff -a
sudo sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

update kernel params

install container runtime ,containerd

curl -LO https://github.com/containerd/containerd/releases/download/v2.0.4/containerd-2.0.4-linux-amd64.tar.gz

sudo tar Cxzvf /usr/local containerd-2.0.4-linux-amd64.tar.gz

curl -LO https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

sudo systemctl daemon-reload
sudo systemctl enable containerd --now

install runc

curl -LO https://github.com/opencontainers/runc/releases/download/v1.1.12/runc.amd64

sudo install -m 755 runc.amd64 /usr/local/sbin/runc

install cni

curl -LO "https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz"

sudo mkdir -p /opt/cni/bin

sudo tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.6.2.tgz

install kubeadm, kubelet, kubectl

kubeadm version
kubelet --version
kubectl version --client

initial kubeadm for Ha cluster

sudo kubeadm join mylb-b12f4818ac02ac54.elb.us-east-1.amazonaws.com:6443 --token wme2w0.ft4sn3x0tc2035bu \

--discovery-token-ca-cert-hash sha256:a4e516c840d20093ef2262c57b3afb171be07cf0ec0514de8198b91f46418b36 \

--control-plane --certificate-key 403d1068384eebe16c1a50fc25e81b24ac7ccef26423244af9e1966e80531f9b --node-name master3

configure crictl to work with containerd

sudo crictl config runtime-endpoint: unix:///run/containerd/containerd.sock
sudo chown $(id -u):$(id -g) /var/run/containerd

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
sudo chown $(id -u):$(id -g) /etc/kubernetes/admin.conf

export KUBECONFIG=/etc/kubernetes/admin.conf

alias kubectl utility

alias k=kubectl > .bashrc && source .bashrc

for worker nodes

worker1.sh

!/bin/bash

disable swap

sudo swapoff -a
sudo sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

update kernel params

install container runtime ,containerd

curl -LO https://github.com/containerd/containerd/releases/download/v2.0.4/containerd-2.0.4-linux-amd64.tar.gz

sudo tar Cxzvf /usr/local containerd-2.0.4-linux-amd64.tar.gz

curl -LO https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

sudo systemctl daemon-reload
sudo systemctl enable containerd --now

install runc

curl -LO https://github.com/opencontainers/runc/releases/download/v1.1.12/runc.amd64

sudo install -m 755 runc.amd64 /usr/local/sbin/runc

install cni

curl -LO "https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz"

sudo mkdir -p /opt/cni/bin

sudo tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.6.2.tgz

install kubeadm, kubelet, kubectl

kubeadm version
kubelet --version
kubectl version --client

initial kubeadm for Ha cluster

sudo kubeadm token create --print-join-command

sudo kubeadm join mylb-7ede46b278348924.elb.us-east-1.amazonaws.com:6443 --token s1pzb2.e49unzo701usj6er \

--discovery-token-ca-cert-hash sha256:3d5d6836796b31f8d638feef97711973cbb62388cd549fb7676016e4d11d3689 --node-name worker1

configure crictl to work with containerd

sudo crictl config runtime-endpoint: unix:///run/containerd/containerd.sock
sudo chown $(id -u):$(id -g) /run/containerd/containerd.sock

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
sudo chown $(id -u):$(id -g) /etc/kubernetes/admin.conf

export KUBECONFIG=/etc/kubernetes/admin.conf

copy kubeconfig from control plane to worker nodes kubeconfig

alias kubectl utility

alias k=kubectl > .bashrc && source .bashrc

worker2.sh

!/bin/bash

disable swap

sudo swapoff -a
sudo sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

update kernel params

install container runtime ,containerd

curl -LO https://github.com/containerd/containerd/releases/download/v2.0.4/containerd-2.0.4-linux-amd64.tar.gz

sudo tar Cxzvf /usr/local containerd-2.0.4-linux-amd64.tar.gz

curl -LO https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

sudo systemctl daemon-reload
sudo systemctl enable containerd --now

install runc

curl -LO https://github.com/opencontainers/runc/releases/download/v1.1.12/runc.amd64

sudo install -m 755 runc.amd64 /usr/local/sbin/runc

install cni

curl -LO "https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz"

sudo mkdir -p /opt/cni/bin

sudo tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.6.2.tgz

install kubeadm, kubelet, kubectl

kubeadm version
kubelet --version
kubectl version --client

initial kubeadm for Ha cluster

sudo kubeadm token create --print-join-command

sudo kubeadm join mylb-7ede46b278348924.elb.us-east-1.amazonaws.com:6443 --token s1pzb2.e49unzo701usj6er \

--discovery-token-ca-cert-hash sha256:3d5d6836796b31f8d638feef97711973cbb62388cd549fb7676016e4d11d3689 --node-name worker2

sudo kubeadm join mylb-7966c35b34cfe6a2.elb.us-east-1.amazonaws.com:6443 --token wedeoe.3dktwv0s0a1tfudi \
--discovery-token-ca-cert-hash sha256:1104fe6342e316036524c87a994e47035f091f6869a4f84292cecc8dd4f279bd --node-name worker2

configure crictl to work with containerd

sudo crictl config runtime-endpoint: unix:///run/containerd/containerd.sock
sudo chwon $(id -u):$(id -g) /run/containerd/containerd.sock

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
sudo chown $(id -u):$(id -g) /etc/kubernetes/admin.conf

export KUBECONFIG=/etc/kubernetes/admin.conf

alias kubectl utility

alias k=kubectl > .bashrc && source .bashrc

worker3.sh

#!/bin/bash

disable swap

sudo swapoff -a
sudo sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

update kernel params

install container runtime ,containerd

curl -LO https://github.com/containerd/containerd/releases/download/v2.0.4/containerd-2.0.4-linux-amd64.tar.gz

sudo tar Cxzvf /usr/local containerd-2.0.4-linux-amd64.tar.gz

curl -LO https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

sudo systemctl daemon-reload
sudo systemctl enable containerd --now

install runc

curl -LO https://github.com/opencontainers/runc/releases/download/v1.1.12/runc.amd64

sudo install -m 755 runc.amd64 /usr/local/sbin/runc

install cni

curl -LO "https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz"

sudo mkdir -p /opt/cni/bin

sudo tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.6.2.tgz

install kubeadm, kubelet, kubectl

kubeadm version
kubelet --version
kubectl version --client

initial kubeadm for Ha cluster

sudo kubeadm token create --print-join-command

sudo kubeadm join mylb-7ede46b278348924.elb.us-east-1.amazonaws.com:6443 --token s1pzb2.e49unzo701usj6er \

--discovery-token-ca-cert-hash sha256:3d5d6836796b31f8d638feef97711973cbb62388cd549fb7676016e4d11d3689 --node-name worker2

configure crictl to work with containerd

sudo crictl config runtime-endpoint: unix:///run/containerd/containerd.sock
sudo chwon $(id -u):$(id -g) /run/containerd/containerd.sock

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
sudo chown $(id -u):$(id -g) /etc/kubernetes/admin.conf

export KUBECONFIG=/etc/kubernetes/admin.conf

alias kubectl utility

alias k=kubectl > .bashrc && source .bashrc

Note: remember to copy kubeconfig from control plane to worker nodes kubeconfig

to deploy infrastructure using by pulumi python and using pulumi esc to store key/value

"""An AWS Python Pulumi program"""
import pulumi , pulumi_aws as aws , json
import pulumi

cfg1=pulumi.Config()

vpc1=aws.ec2.Vpc(
"vpc1",
aws.ec2.VpcArgs(
cidr_block=cfg1.require(key="block1"),
tags={
"Name" : "vpc1"
}
)
)

intgw1=aws.ec2.InternetGateway(
"intgw1",
aws.ec2.InternetGatewayArgs(
vpc_id=vpc1.id,
tags={
"Name" : "intgw1"
}
)
)

zones=["us-east-1a", "us-east-1b" , "us-east-1c"]
cidr1=cfg1.require(key="cidr1")
cidr2=cfg1.require(key="cidr2")
cidr3=cfg1.require(key="cidr3")
cidr4=cfg1.require(key="cidr4")
cidr5=cfg1.require(key="cidr5")
cidr6=cfg1.require(key="cidr6")
pubsubnets=[cidr1,cidr2,cidr3]
privsubnets=[cidr4,cidr5,cidr6]

pubnames=["pub1" , "pub2" , "pub3" ]
privnames=[ "priv1" , "priv2" , "priv3" ]

for allpub in range(len(pubnames)):
pubnames[allpub]=aws.ec2.Subnet(
pubnames[allpub],
aws.ec2.SubnetArgs(
vpc_id=vpc1.id,
cidr_block=pubsubnets[allpub],
availability_zone=zones[allpub],
map_public_ip_on_launch=True,
tags={
"Name" : pubnames[allpub]
}

)
)

table1=aws.ec2.RouteTable(
"table1",
aws.ec2.RouteTableArgs(
vpc_id=vpc1.id,
routes=[
aws.ec2.RouteTableRouteArgs(
cidr_block=cfg1.require(key="any_ipv4_traffic"),
gateway_id=intgw1.id
)
],
tags={
"Name" : "table1"
}

)
)

pub_associate1=aws.ec2.RouteTableAssociation(
"pub_associate1",
aws.ec2.RouteTableAssociationArgs(
subnet_id=pubnames[0].id,
route_table_id=table1.id
)
)

pub_associate2=aws.ec2.RouteTableAssociation(
"pub_associate2",
aws.ec2.RouteTableAssociationArgs(
subnet_id=pubnames[1].id,
route_table_id=table1.id
)
)

pub_associate3=aws.ec2.RouteTableAssociation(
"pub_associate3",
aws.ec2.RouteTableAssociationArgs(
subnet_id=pubnames[2].id,
route_table_id=table1.id
)
)

for allpriv in range(len(privnames)):
privnames[allpriv]=aws.ec2.Subnet(
privnames[allpriv],
aws.ec2.SubnetArgs(
vpc_id=vpc1.id,
cidr_block=privsubnets[allpriv],
availability_zone=zones[allpriv],
tags={
"Name" : privnames[allpriv]
}

)
)

eips=[ "eip1" , "eip2" , "eip3" ]

for alleips in range(len(eips)):
eips[alleips]=aws.ec2.Eip(
eips[alleips],
aws.ec2.EipArgs(
domain="vpc",
tags={
"Name" : eips[alleips]
}
)
)

nats=[ "natgw1" , "natgw2" , "natgw3" ]

mynats= {

"nat1" : aws.ec2.NatGateway(
"nat1",
connectivity_type="public",
subnet_id=pubnames[allpub].id,
allocation_id=eips[0].allocation_id,
tags={
"Name" : "nat1"
}
),

"nat2" : aws.ec2.NatGateway(
"nat2",
connectivity_type="public",
subnet_id=pubnames[1].id,
allocation_id=eips[1].allocation_id,
tags={
"Name" : "nat2"
}
),

"nat3" : aws.ec2.NatGateway(
"nat3",
connectivity_type="public",
subnet_id=pubnames[2].id,
allocation_id=eips[2].allocation_id,
tags={
"Name" : "nat3"
}
),

}

priv2table2=aws.ec2.RouteTable(
"priv2table2",
aws.ec2.RouteTableArgs(
vpc_id=vpc1.id,
routes=[
aws.ec2.RouteTableRouteArgs(
cidr_block=cfg1.require(key="any_ipv4_traffic"),
nat_gateway_id=mynats["nat1"]
)
],
tags={

"Name" : "priv2table2"
}
)
)

priv3table3=aws.ec2.RouteTable(
"priv3table3",
aws.ec2.RouteTableArgs(
vpc_id=vpc1.id,
routes=[
aws.ec2.RouteTableRouteArgs(
cidr_block=cfg1.require(key="any_ipv4_traffic"),
nat_gateway_id=mynats["nat2"]
)
],
tags={

"Name" : "priv3table3"
}
)
)

priv4table4=aws.ec2.RouteTable(
"priv4table4",
aws.ec2.RouteTableArgs(
vpc_id=vpc1.id,
routes=[
aws.ec2.RouteTableRouteArgs(
cidr_block=cfg1.require(key="any_ipv4_traffic"),
nat_gateway_id=mynats["nat3"]
)
],
tags={

"Name" : "priv4table4"
}
)
)

privassociate1=aws.ec2.RouteTableAssociation(
"privassociate1",
aws.ec2.RouteTableAssociationArgs(
subnet_id=privnames[0].id,
route_table_id=priv2table2.id
)
)

privassociate2=aws.ec2.RouteTableAssociation(
"privassociate2",
aws.ec2.RouteTableAssociationArgs(
subnet_id=privnames[1].id,
route_table_id=priv3table3.id
)
)

privassociate3=aws.ec2.RouteTableAssociation(
"privassociate3",
aws.ec2.RouteTableAssociationArgs(
subnet_id=privnames[2].id,
route_table_id=priv4table4.id
)
)

nacl_ingress_trafic=[
aws.ec2.NetworkAclIngressArgs(
from_port=22,
to_port=22,
protocol="tcp",
cidr_block=cfg1.require(key="myips"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=100
),
aws.ec2.NetworkAclIngressArgs(
from_port=22,
to_port=22,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="deny",
rule_no=101
),
aws.ec2.NetworkAclIngressArgs(
from_port=80,
to_port=80,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=200

),
aws.ec2.NetworkAclIngressArgs(
from_port=443,
to_port=443,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=300
),
aws.ec2.NetworkAclIngressArgs(
from_port=1024,
to_port=65535,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=400
),
aws.ec2.NetworkAclIngressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=500
)
]

nacl_egress_trafic=[
aws.ec2.NetworkAclEgressArgs(
from_port=22,
to_port=22,
protocol="tcp",
cidr_block=cfg1.require(key="myips"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=100
),
aws.ec2.NetworkAclEgressArgs(
from_port=22,
to_port=22,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="deny",
rule_no=101
),
aws.ec2.NetworkAclEgressArgs(
from_port=80,
to_port=80,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=200

),
aws.ec2.NetworkAclEgressArgs(
from_port=443,
to_port=443,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=300
),

aws.ec2.NetworkAclEgressArgs(
from_port=1024,
to_port=65535,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=400
),
aws.ec2.NetworkAclEgressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=500
)
]

mynacls=aws.ec2.NetworkAcl(
"mynacls",
aws.ec2.NetworkAclArgs(
vpc_id=vpc1.id,
ingress=nacl_ingress_trafic,
egress=nacl_egress_trafic,
tags={
"Name": "mynacls"
}
)
)

nacl_associate1=aws.ec2.NetworkAclAssociation(
"nacl_associate1",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=pubnames[0].id
),
)

nacl1=aws.ec2.NetworkAclAssociation(
"nacl1",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=pubnames[0].id
)
)
nacl2=aws.ec2.NetworkAclAssociation(
"nacl2",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=pubnames[1].id
)
),

nacl3=aws.ec2.NetworkAclAssociation(
"nacl3",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=pubnames[2].id
)
),

nacl4=aws.ec2.NetworkAclAssociation(
"nacl4",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=privnames[0].id
)
),

nacl5=aws.ec2.NetworkAclAssociation(
"nacl5",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=privnames[1].id
)
),
nacl6=aws.ec2.NetworkAclAssociation(
"nacl6",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=privnames[2].id
)
),

master_ingress_rule={
"rule2":aws.ec2.SecurityGroupIngressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_blocks=[ cfg1.require(key="any_ipv4_traffic") ]
),
}

master_egress_rule={
"rule5": aws.ec2.SecurityGroupEgressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_blocks=[ cfg1.require(key="any_ipv4_traffic") ]
)
}

mastersecurity=aws.ec2.SecurityGroup(
"mastersecurity",
aws.ec2.SecurityGroupArgs(
name="mastersecurity",
vpc_id=vpc1.id,
tags={
"Name" : "mastersecurity"
},
ingress=[
master_ingress_rule["rule2"],
],
egress=[master_egress_rule["rule5"]]
)
)

worker_ingress_rule={
"rule2": aws.ec2.SecurityGroupIngressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_blocks=[cfg1.require(key="any_ipv4_traffic")]
),
}

worker_egress_rule={
"rule5": aws.ec2.SecurityGroupEgressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_blocks=[ cfg1.require(key="any_ipv4_traffic") ]
)
}

workersecurity=aws.ec2.SecurityGroup(
"workersecurity",
aws.ec2.SecurityGroupArgs(
name="workersecurity",
vpc_id=vpc1.id,
tags={
"Name" : "workersecurity"
},
ingress=[
worker_ingress_rule["rule2"]
],
egress=[worker_egress_rule["rule5"]]
)
)

lbsecurity=aws.ec2.SecurityGroup(
"lbsecurity",
aws.ec2.SecurityGroupArgs(
name="lbsecurity",
vpc_id=vpc1.id,
tags={
"Name" : "lbsecurity"
},
ingress=[
aws.ec2.SecurityGroupIngressArgs(
from_port=6443,
to_port=6443,
protocol="tcp",
cidr_blocks=[cfg1.require(key="any_ipv4_traffic")] # for kube-apiserver
),
],
egress=[
aws.ec2.SecurityGroupEgressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_blocks=[cfg1.require(key="any_ipv4_traffic")]
)
]
)
)

mylb=aws.lb.LoadBalancer(
"mylb",
aws.lb.LoadBalancerArgs(
name="mylb",
load_balancer_type="network",
idle_timeout=300,
ip_address_type="ipv4",
security_groups=[lbsecurity.id],
subnets=[
pubnames[0].id,
pubnames[1].id,
pubnames[2].id
],
tags={
"Name" : "mylb"
},
internal=False,
enable_cross_zone_load_balancing=True
)
)

mytargets2=aws.lb.TargetGroup(
"mytargets2",
aws.lb.TargetGroupArgs(
name="mytargets2",
port=6443,
protocol="TCP",
target_type="instance",
vpc_id=vpc1.id,
tags={
"Name" : "mytargets2"
},
health_check=aws.lb.TargetGroupHealthCheckArgs(
enabled=True,
interval=60,
port="traffic-port",
healthy_threshold=3,
unhealthy_threshold=3,
timeout=30,
matcher="200-599"
)
)
)

listener1=aws.lb.Listener(
"listener1",
aws.lb.ListenerArgs(
load_balancer_arn=mylb.arn,
port=6443,
protocol="TCP",
default_actions=[
aws.lb.ListenerDefaultActionArgs(
type="forward",
target_group_arn=mytargets2.arn
),
]
)
)

clusters_role=aws.iam.Role(
"clusters_role",
aws.iam.RoleArgs(
name="clustersroles",
assume_role_policy=json.dumps({
"Version" : "2012-10-17",
"Statement" : [{
"Effect" : "Allow",
"Action": "sts:AssumeRole",
"Principal": {
"Service" : "ec2.amazonaws.com"
}
}]

})
)
)

ssmattach1=aws.iam.RolePolicyAttachment(
"ssmattach1",
aws.iam.RolePolicyAttachmentArgs(
role=clusters_role.name,
policy_arn=aws.iam.ManagedPolicy.AMAZON_SSM_MANAGED_EC2_INSTANCE_DEFAULT_POLICY
)
)

myprofile=aws.iam.InstanceProfile(
"myprofile",
aws.iam.InstanceProfileArgs(
name="myprofile",
role=clusters_role.name,
tags={
"Name" : "myprofile"
}

)
)

mastertemps=aws.ec2.LaunchTemplate(
"mastertemps",
aws.ec2.LaunchTemplateArgs(
image_id=cfg1.require(key="ami"),
name="mastertemps",
instance_type=cfg1.require(key="instance-type"),
vpc_security_group_ids=[mastersecurity.id],
block_device_mappings=[
aws.ec2.LaunchTemplateBlockDeviceMappingArgs(
device_name="/dev/sdb",
ebs=aws.ec2.LaunchTemplateBlockDeviceMappingEbsArgs(
volume_size=8,
volume_type="gp3",
delete_on_termination=True,
encrypted="false"
)
)
],
tags={
"Name" : "mastertemps"
},
iam_instance_profile= aws.ec2.LaunchTemplateIamInstanceProfileArgs(
arn=myprofile.arn
)
)
)

controlplane=aws.autoscaling.Group(
"controlplane",
aws.autoscaling.GroupArgs(
name="controlplane",
vpc_zone_identifiers=[
pubnames[0].id,
pubnames[1].id,
pubnames[2].id
],
desired_capacity=3,
max_size=9,
min_size=1,
launch_template=aws.autoscaling.GroupLaunchTemplateArgs(
id=mastertemps.id,
version="$Latest"
),
default_cooldown=600,
tags=[
aws.autoscaling.GroupTagArgs(
key="Name",
value="controlplane",
propagate_at_launch=True
)
],
health_check_grace_period=600,
health_check_type="EC2",
)
)

lbattach=aws.autoscaling.Attachment(
"lbattach",
aws.autoscaling.AttachmentArgs(
autoscaling_group_name=controlplane.name ,
lb_target_group_arn=mytargets2.arn
)
)

workertemps=aws.ec2.LaunchTemplate(
"workertemps",
aws.ec2.LaunchTemplateArgs(
image_id=cfg1.require(key="ami"),
name="workertemps",
instance_type=cfg1.require(key="instance-type"),
vpc_security_group_ids=[mastersecurity.id],
block_device_mappings=[
aws.ec2.LaunchTemplateBlockDeviceMappingArgs(
device_name="/dev/sdr",
ebs=aws.ec2.LaunchTemplateBlockDeviceMappingEbsArgs(
volume_size=8,
volume_type="gp3",
delete_on_termination=True,
encrypted="false"
)
)
],
tags={
"Name" : "workertemps"
},
iam_instance_profile=aws.ec2.LaunchTemplateIamInstanceProfileArgs(
arn=myprofile.arn
)
)
)

worker=aws.autoscaling.Group(
"worker",
aws.autoscaling.GroupArgs(
name="worker",
vpc_zone_identifiers=[
privnames[0].id,
privnames[1].id,
privnames[2].id
],
desired_capacity=3,
max_size=9,
min_size=1,
launch_template=aws.autoscaling.GroupLaunchTemplateArgs(
id=workertemps.id,
version="$Latest"
),
default_cooldown=600,
tags=[
aws.autoscaling.GroupTagArgs(
key="Name",
value="worker",
propagate_at_launch=True
)
],
health_check_grace_period=600,
health_check_type="EC2",
)
)

myssmdoc=aws.ssm.Document(
"myssmdoc",
aws.ssm.DocumentArgs(
name="mydoc",
document_format="YAML",
document_type="Command",
version_name="1.1.0",
content="""schemaVersion: '1.2'
description: Check ip configuration of a Linux instance.
parameters: {}
runtimeConfig:
'aws:runShellScript':
properties:

id: '0.aws:runShellScript' runCommand:
sudo su
sudo apt update -y && sudo apt upgrade -y
sudo apt install -y net-tools
sudo systemctl enable amazon-ssm-agent --now

"""
)
)

myssmassociates=aws.ssm.Association(
"myssmassociates",
aws.ssm.AssociationArgs(
name=myssmdoc.name,
association_name="myssmassociates",
targets=[
aws.ssm.AssociationTargetArgs(
key="InstanceIds",
values=["*"]
)
],
)
)

controlplanes=aws.ec2.get_instances(
instance_tags={
"Name": "controlplane"
},
instance_state_names=["running"],
)

workers=aws.ec2.get_instances(
instance_tags={
"Name": "worker"
},
instance_state_names=["running"],
)

get_controlplanepubips=controlplanes.public_ips
get_controlplaneprivips=controlplanes.private_ips
get_workerprivips=workers.private_ips
get_loadbalancer=mylb.dns_name
pulumi.export("get_controlplanepubips", get_controlplanepubips)
pulumi.export("get_controlplaneprivips", get_controlplaneprivips)
pulumi.export("get_workerprivips", get_workerprivips)
pulumi.export("get_loadbalancer", get_loadbalancer)

Note:

for control plane security group

   allow   all  traffic   in  inbound and  outbound  rules

for worker secuiity group

  allow  all  traffic   in  inbound   and outbound  rules

for network load balancer security group

 allow tcp 6443 for apiserver  which  allow  registered  target control plane nodes

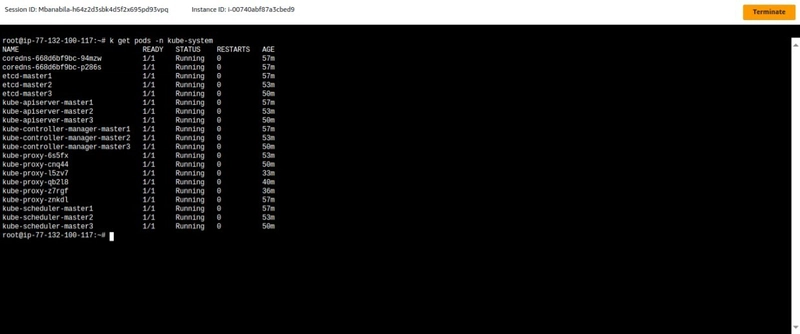

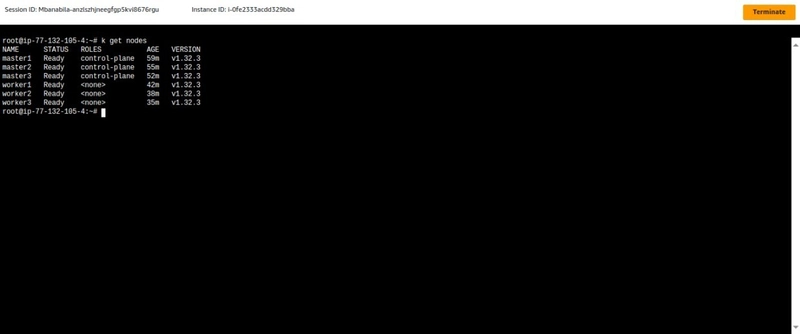

outcomes : from control plane and worker nodes

references:

https://kubernetes.io/docs/setup/production-environment/tools/kubeadm/high-availability/

https://www.youtube.com/watch?v=FHXucrzqcZM&t=1944s
