Apr 25, 2025 - 19:21

Recently I traveled abroad and need a solution to use my workstation. I tried the RustDesk remote desktop. It needs a self-hosted server if you don't want to use their cloud solution and yet I don't want to :) So after I created a virtual machine on my Proxmox host with the official suggested hardware capabilities and installed an OS (AlmaLinux), I went through the following steps described below:

Create user for running the server

I made a group and user named rustdesk on that system and created the /home/rustdesk/.config/containers/systemd/ path because I wanted to run the server containerized with Podman handled by Systemd.

groupadd --gid 990 --system rustdesk
useradd --system --create-home --gid 990 rustdesk
sudo -u rustdesk mkdir -p /home/rustdesk/.config/containers/systemd/

Because the server have to be start at boot I enabled lingering for the rustdesk user so in this way it doesn't need an active session.

loginctl enable-linger rustdesk

Configure firewall

Based on the official documentation RustDesk needs a couple port to communicate with clients. I created a service named rustdesk and add ports to it. Later assign the newly created service to the public zone.

firewall-cmd --permanent --new-service=rustdesk
firewall-cmd --permanent --service=rustdesk --set-description='Ports which are necessary to operate with rustdesk'
firewall-cmd --permanent --service=rustdesk --add-port=21115/tcp
firewall-cmd --permanent --service=rustdesk --add-port=21116/tcp
firewall-cmd --permanent --service=rustdesk --add-port=21116/udp
firewall-cmd --permanent --service=rustdesk --add-port=21118/tcp
firewall-cmd --permanent --service=rustdesk --add-port=21117/tcp
firewall-cmd --permanent --service=rustdesk --add-port=21119/tcp
firewall-cmd --permanent --zone=public --add-service=rustdesk
firewall-cmd --reload

Check the firewall configuration

If you want to check the completed settings you can list the services assigned to the public zone and list the opened ports of the service.

firewall-cmd --zone=public --list-services
firewall-cmd --service=rustdesk --get-ports

Create systemd resources

Podman has a great integration with systemd. You can create and configure containers, volumes and networking. I did not mind the networking in this configuration, but I wanted to persist the /root folder as the official documentation suggested. Because I only needed a simple volume I just created the rustdesk-hbbs.volume and rustdesk-hbbr.volume files under the /home/rustdesk/.config/containers/systemd/ with the following content:

[Volume]

Based on the configuration above the tool Quadlet - that installed alongside Podman - creates the appropriate systemd configurations and the end of the process a podman volume creates on the machine.

In the next step I created the configuration for the server containers. It's like n ordinary systemd service file, but it has an extra section named [Container]. The possible configurations are described here: podman-systemd.unit (5). You can notice I used the standard Restart parameter under the [Service] section to configure when should the container restarts. You can find more information about the configurations here: systemd.service

`hbbs.container`

[Unit]
Description=Rustdesk HBBS cotnainer
After=local-fs.target

[Container]
AutoUpdate=registry
Image=ghcr.io/rustdesk/rustdesk-server:latest
ContainerName=hbbs
PublishPort=21115:21115
PublishPort=21116:21116
PublishPort=21116:21116/udp
PublishPort=21118:21118
Volume=rustdesk-hbbs.volume:/root
Exec=hbbs

[Service]
Restart=on-failure

[Install]
WantedBy=multi-user.target default.target

`hbbr.container`

[Unit]
Description=Rustdesk HBBR cotnainer
After=local-fs.target

[Container]
AutoUpdate=registry
Image=ghcr.io/rustdesk/rustdesk-server:latest
ContainerName=hbbr
PublishPort=21117:21117
PublishPort=21119:21119
Volume=rustdesk-hbbr.volume:/root
Exec=hbbr

[Service]
Restart=on-failure

[Install]
WantedBy=multi-user.target default.target

Start the application

I struggled to start with the start of the application and then I found the following post on StackOverflow:

systemd 248 (released March 2021) introduced support for the syntax -M myuser@ for specifying another user.
sudo systemctl --user -M myuser@ start ap@inst1
A side-note: If you want to get an interactive login shell for the user myuser
sudo machinectl shell myuser@

On my fresh installed AlmaLinux Podman complained about only few user namespaces were allowed, so I increased the number of the namespaces, and enabled IP forwarding for the containers. I edited directly the /etc/sysctl.conf file, and add / changed the following properties

net.ipv4.ip_forward = 1
user.max_user_namespaces = 15000

After that I reloaded the settings and started the services in the name of the user rustdesk.

systemctl --user -M rustdesk@ daemon-reload
systemctl --user -M rustdesk@ start hbbs.service
systemctl --user -M rustdesk@ start hbbr.service

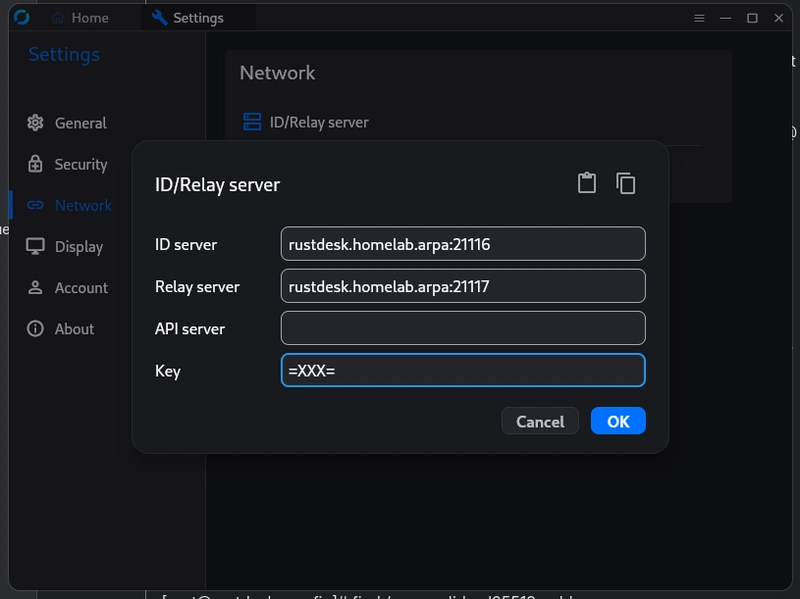

Configure the clients

In the settings menu of the application use the hostname or IP address of the RustDesk service. For the ID Server use the 21116 port and for the Relay server the 21117 port. During the startup the HBBS service generate a keypair, and in the Key field I inserted the content of the public key. It can be found under the path /home/rustdesk/.local/share/containers/storage/volumes/systemd-rustdesk-hbbs/_data/id_ed25519.pub

Additional Technical Notes:

User Namespaces and Networking: I had to increase the maximum allowed user namespaces on my system. This is necessary for containers to run securely with their own isolated environments. If you’re not familiar with namespaces, they essentially provide a layer of isolation between processes, which is crucial for container security.
Podman Networking: While I didn’t configure custom networking in this setup, it's an important aspect of containerized applications. You might want to define a specific network for your containers if you need them to communicate with other systems outside the host.
