Quartz Scheduler setup, integration with Spring Boot, deploy using kubernates, a simple Hands-on

This article is about how to setup and integrate quartz scheduler in a Spring Boot application with simple setup, deploy using Kubernates.

Quartz Scheduler is an open- source Scheduling framework for Java. Below are some of the main features of Quartz which will be focused in this article.

Job Schedule/Execution/Persistence
Clustering.

Prerequisites:

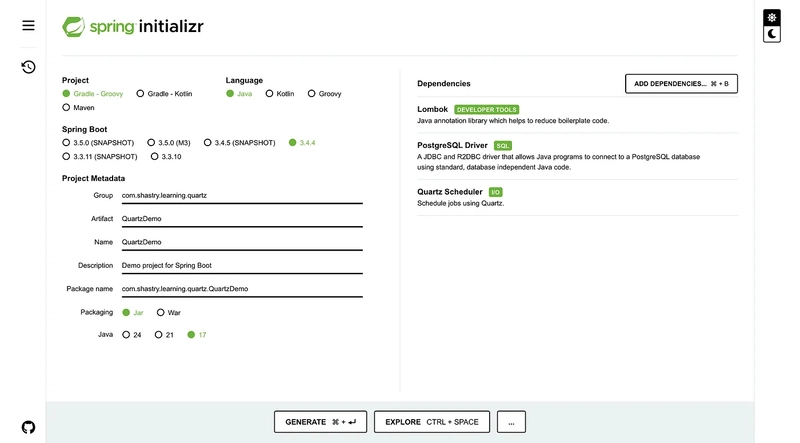

Below are the dependencies for this demo. Used https://start.spring.io/ to create the Spring Boot application.

JDK 17
Gradle-Groovy
Quartz Scheduler
PostgreSQL Driver.(Using it to persist Job info)
Lombok

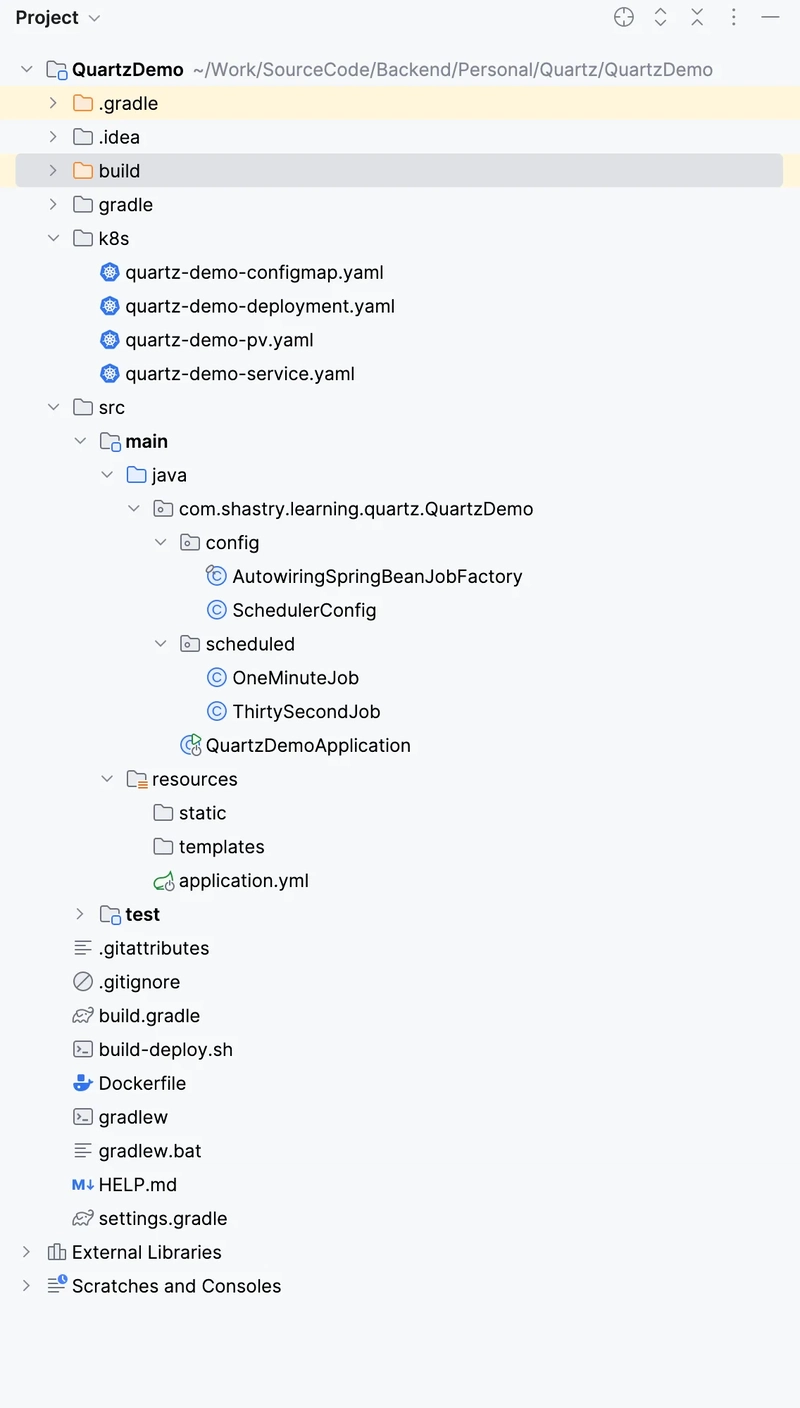

Below is the project folder structure.

Code Setup:

Follow the below steps for code setup..

Download/Generate the Spring boot project with prerequisites mentioned above and import it to any IDE. In this case I am using IntelliJ
build.gradlefile should be similar to below.

plugins {
 id 'java'
 id 'org.springframework.boot' version '3.4.4'
 id 'io.spring.dependency-management' version '1.1.7'
}

group = 'com.shastry.learning.quartz'
version = '0.0.1-SNAPSHOT'

java {
 toolchain {
  languageVersion = JavaLanguageVersion.of(17)
 }
}

configurations {
 compileOnly {
  extendsFrom annotationProcessor
 }
}

repositories {
 mavenCentral()
}

dependencies {
 implementation 'org.springframework.boot:spring-boot-starter-quartz'
 compileOnly 'org.projectlombok:lombok'
 runtimeOnly 'org.postgresql:postgresql'
 annotationProcessor 'org.projectlombok:lombok'
 testImplementation 'org.springframework.boot:spring-boot-starter-test'
 testRuntimeOnly 'org.junit.platform:junit-platform-launcher'
}

tasks.named('test') {
 useJUnitPlatform()
}

Create couple of jobs which will be executed by Quartz. @DisallowConcurrentExecution will prevent running concurrent execution of job. Meaning only one Job of this type be executed at any time. @PersistJobDataAfterExecution will persist the Job data once execution is completed.

package com.shastry.learning.quartz.QuartzDemo.scheduled;

import lombok.extern.slf4j.Slf4j;
import org.quartz.DisallowConcurrentExecution;
import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.quartz.PersistJobDataAfterExecution;

import java.time.OffsetDateTime;

@Slf4j
@DisallowConcurrentExecution
@PersistJobDataAfterExecution
public class OneMinuteJob implements Job {

    /**
     * @param context
     * @throws JobExecutionException
     */
    @Override
    public void execute(JobExecutionContext context) throws JobExecutionException {
        log.info("Executing OneMinuteJob at {}", OffsetDateTime.now().toInstant());
    }
}

package com.shastry.learning.quartz.QuartzDemo.scheduled;

import lombok.extern.slf4j.Slf4j;
import org.quartz.DisallowConcurrentExecution;
import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.quartz.PersistJobDataAfterExecution;

import java.time.OffsetDateTime;

@Slf4j
@DisallowConcurrentExecution
@PersistJobDataAfterExecution
public class ThirtySecondJob implements Job {

    /**
     * @param context
     * @throws JobExecutionException
     */
    @Override
    public void execute(JobExecutionContext context) throws JobExecutionException {
        log.info("Executing ThirtySecondJob at {}", OffsetDateTime.now().toInstant());
    }
}

Configure AutowiringSpringBeanFactory This config ensures Quartz to create job instances using Spring’s context with required dependencies.

package com.shastry.learning.quartz.QuartzDemo.config;

import org.quartz.spi.TriggerFiredBundle;
import org.springframework.beans.factory.config.AutowireCapableBeanFactory;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.scheduling.quartz.SpringBeanJobFactory;

public final class AutowiringSpringBeanJobFactory extends SpringBeanJobFactory implements ApplicationContextAware {

    private transient AutowireCapableBeanFactory beanFactory;

    @Override
    public void setApplicationContext(final ApplicationContext context) {
        beanFactory = context.getAutowireCapableBeanFactory();
    }

    @Override
    protected Object createJobInstance(final TriggerFiredBundle bundle) throws Exception {
        final Object job = super.createJobInstance(bundle);
        beanFactory.autowireBean(job);
        return job;
    }

}

Configure Quartz Scheduler. SchedulerConfig configures Jobs, triggers and schedulers. Different type of triggers are used for different jobs

Simple Trigger: This can be used to fire jobs at regular interval of time repeatedly. The trigger can be configured to start after some fixed delay. Here 30s job is configured using SimpleTrigger.
Cron Trigger: This can be used for creating triggers based on a cron expression. Here 1min job is configured using CRON expression.

package com.shastry.learning.quartz.QuartzDemo.config;

import com.shastry.learning.quartz.QuartzDemo.scheduled.OneMinuteJob;
import com.shastry.learning.quartz.QuartzDemo.scheduled.ThirtySecondJob;
import lombok.AllArgsConstructor;
import lombok.Data;
import org.quartz.Job;
import org.quartz.JobDetail;
import org.quartz.Trigger;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.quartz.QuartzDataSourceScriptDatabaseInitializer;
import org.springframework.boot.autoconfigure.quartz.QuartzProperties;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.DependsOn;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.scheduling.quartz.CronTriggerFactoryBean;
import org.springframework.scheduling.quartz.JobDetailFactoryBean;
import org.springframework.scheduling.quartz.SchedulerFactoryBean;
import org.springframework.scheduling.quartz.SimpleTriggerFactoryBean;
import org.springframework.stereotype.Component;

import javax.sql.DataSource;
import java.util.List;
import java.util.Properties;

@Configuration
@AllArgsConstructor
public class SchedulerConfig {

    @Component
    @Data
    @ConfigurationProperties("app.scheduling")
    public static class SchedulerConfigProperties {

        @Data
        public static class ScheduledJobTimingConfig {
            private String cron;
            private int startDelayMillis;
            private int fixedDelay;
        }

        private ScheduledJobTimingConfig oneMinuteJob;
        private ScheduledJobTimingConfig thirtySecondJob;

    }

    private SchedulerConfigProperties schedulerConfigProperties;
    private final QuartzProperties quartzProperties;

    // --------------------- Jobs -----------------------------

    @Bean("oneMinuteJob")
    public JobDetailFactoryBean oneMinuteJob() {
        return createJobDetail(OneMinuteJob.class, "One Minute Job");
    }

    @Bean("thirtySecondJob")
    public JobDetailFactoryBean thirtySecondJob() {
        return createJobDetail(ThirtySecondJob.class, "Thirty Second Job");
    }

    // --------------------- Triggers  ------------------------

    @Bean("thirtySecondJobTrigger")
    public SimpleTriggerFactoryBean thirtySecondJobTrigger(@Qualifier("thirtySecondJob") JobDetail jobDetail) {
        var trigger = new SimpleTriggerFactoryBean();
        trigger.setJobDetail(jobDetail);
        trigger.setName(jobDetail.getDescription());
        trigger.setStartDelay(schedulerConfigProperties.getThirtySecondJob().getStartDelayMillis());
        trigger.setRepeatInterval(schedulerConfigProperties.getThirtySecondJob().getFixedDelay());
        return trigger;
    }

    @Bean("oneMinuteJobTrigger")
    public CronTriggerFactoryBean oneMinuteJobTrigger(@Qualifier("oneMinuteJob") JobDetail jobDetail) {
        return createCronTrigger(jobDetail,
            schedulerConfigProperties.getOneMinuteJob().getCron(),
            schedulerConfigProperties.getOneMinuteJob().getStartDelayMillis());
    }

    @Bean
    @DependsOn("quartzDataSourceInitializer")
    public SchedulerFactoryBean schedulerFactoryBean(
        List jobDetails,
        List triggers,
        DataSource dataSource,
        DataSourceTransactionManager transactionManager) {

        var props = new Properties();
        var factory = new SchedulerFactoryBean();

        props.putAll(quartzProperties.getProperties());
        factory.setQuartzProperties(props);
        factory.setDataSource(dataSource);
        factory.setTransactionManager(transactionManager);
        factory.setJobFactory(autowiringSpringBeanJobFactory());
        factory.setJobDetails(jobDetails.toArray(new JobDetail[0]));
        factory.setTriggers(triggers.toArray(new Trigger[0]));
        factory.setAutoStartup(true);
        factory.setOverwriteExistingJobs(true);

        return factory;
    }

    @Bean
    public QuartzDataSourceScriptDatabaseInitializer quartzDataSourceInitializer(DataSource dataSource) {
        return new QuartzDataSourceScriptDatabaseInitializer(dataSource, quartzProperties);
    }

    @Bean
    public AutowiringSpringBeanJobFactory autowiringSpringBeanJobFactory() {
        return new AutowiringSpringBeanJobFactory();
    }


    private  JobDetailFactoryBean createJobDetail(Class jobClass, String jobName) {
        JobDetailFactoryBean jobDetailFactoryBean = new JobDetailFactoryBean();
        jobDetailFactoryBean.setJobClass(jobClass);
        jobDetailFactoryBean.setDescription(jobName);
        jobDetailFactoryBean.setDurability(true);
        return jobDetailFactoryBean;
    }

    private CronTriggerFactoryBean createCronTrigger(JobDetail jobDetail, String cron, int startDelayMillis) {
        CronTriggerFactoryBean cronTriggerFactoryBean = new CronTriggerFactoryBean();
        cronTriggerFactoryBean.setJobDetail(jobDetail);
        cronTriggerFactoryBean.setCronExpression(cron);
        cronTriggerFactoryBean.setStartDelay(startDelayMillis);
        cronTriggerFactoryBean.setName(jobDetail.getDescription());
        return cronTriggerFactoryBean;
    }
}

Create application.yml to configure db, quartz and schedulers.

spring:
  application:
    name=QuartzDemo
  datasource:
    url: jdbc:postgresql://quartz-postgres-service:5432/postgres
    username: postgres
    password: postgres
    driver-class-name: org.postgresql.Driver
  jpa:
    show-sql: false
    hibernate:
      ddl-auto: update
      dialect: org.hibernate.dialect.PostgreSQLDialect
  quartz:
    job-store-type: jdbc
    jdbc:
      initialize-schema: always
    properties:
      org:
        quartz:
          jobStore:
            clusterCheckinInterval: 20000
            misfireThreshold: 60000
            driverDelegateClass: org.quartz.impl.jdbcjobstore.PostgreSQLDelegate #Postgre specific
          scheduler:
            instanceName: quartz-demo
            instanceId: AUTO
          threadPool:
            threadCount: 10
            threadPriority: 5
            class: org.quartz.simpl.SimpleThreadPool

app:
  scheduling:
    oneMinuteJob:
      cron: "0 0/1 * * * ? *" # Cron expression to run every minute
      start-delay-millis: 10000 # Start the job after the configured delay
    thirtySecondJob:
      fixed-delay: 30000 # Run/Repeat the job every 30 seconds
      start-delay-millis: 20000

Note:
postgresql hostnames are configured in kubernates config which will be covered in the deployment section.

Deployment:

Generate Dockerfile

# Java 17 base image for the app
FROM openjdk:17-jdk-slim-buster
LABEL authors="sumanth.shastry"

# Setup base dir for the app to run
WORKDIR /app

# Copy the app jar
COPY build/libs/QuartzDemo*.jar /app/quartz-demo.jar

ENTRYPOINT ["java", "-jar", "/app/quartz-demo.jar"]

Create Persistent Volume and claim for PostgreSQL

apiVersion: v1
kind: PersistentVolume
metadata:
  name: quartz-postgres-pv
spec:
  capacity:
    storage: 2Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: "/mnt/data/quartz-postgres"
---

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: quartz-postgres-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi

Create ConfigMap to configure PostgreSQL DB details

apiVersion: v1
kind: ConfigMap
metadata:
  name: quartz-postgres-config
data:
  POSTGRES_DB: "postgres"
  POSTGRES_USER: "postgres"
  POSTGRES_PASSWORD: "postgres"
Create services for PostgreSQL and spring boot app.
apiVersion: v1
kind: Service
metadata:
  name: quartz-postgres-service
spec:
  selector:
    app: quartz-postgres-service
  ports:
    - protocol: TCP
      port: 5432
      targetPort: 5432
      nodePort: 31079
  type: NodePort
---
apiVersion: v1
kind: Service
metadata:
  name: quartz-demo
spec:
  selector:
    app: quartz-demo
  ports:
    - port: 8080
      targetPort: 8080
      nodePort: 30080
      protocol: TCP
  type: NodePort

Create deployment forPostgreSQL and spring boot app.

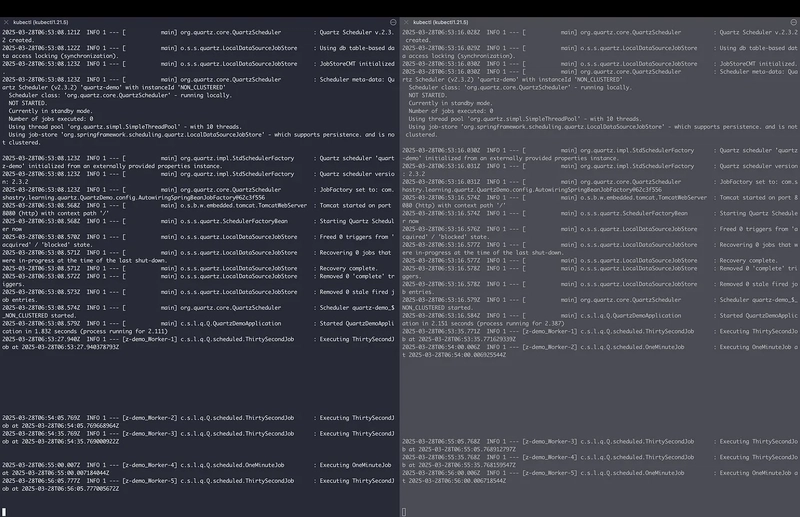

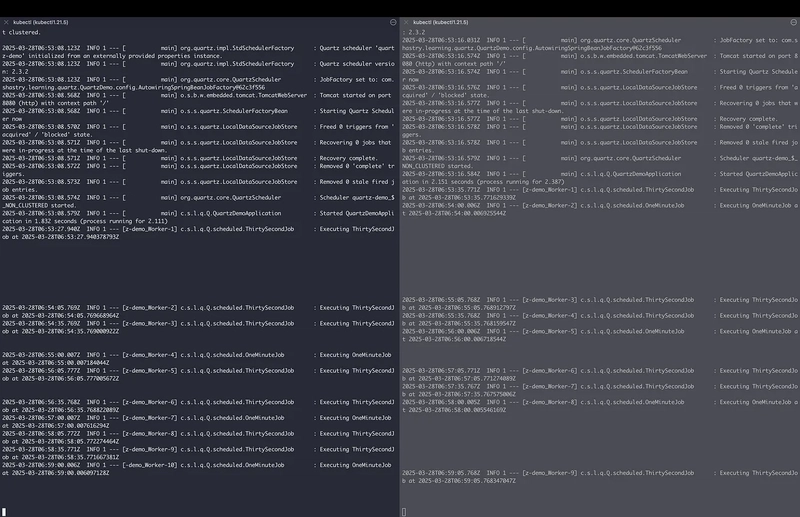

Note: Created 2 replicas for Spring Boot app to test Load Balancing and no overlap/concurrent jobs running in separete instances.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: quartz-postgres-service
  labels:
    app: quartz-postgres-service
spec:
  replicas: 1
  selector:
    matchLabels:
      app: quartz-postgres-service
  template:
    metadata:
      name: quartz-postgres-service
      labels:
        app: quartz-postgres-service
    spec:
      containers:
        - name: quartz-postgres-service
          image: postgres:latest
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 5432
              protocol: TCP
          envFrom:
            - configMapRef:
                name: quartz-postgres-config
          volumeMounts:
            - mountPath: /var/lib/postgresql/data
              name: postgres-storage
      volumes:
        - name: postgres-storage
          persistentVolumeClaim:
              claimName: quartz-postgres-pvc
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: quartz-demo
  labels:
    app: quartz-demo
spec:
  replicas: 2
  selector:
    matchLabels:
      app: quartz-demo
  template:
    metadata:
      name: quartz-demo
      labels:
          app: quartz-demo
    spec:
      containers:
        - name: quartz-demo
          image: quartz-demo:0.0.1-SNAPSHOT
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 8080
              protocol: TCP

Create deployment script to build spring boot, create docker image create PostgreSQL using above k8s config.

#!/bin/bash

APP_NAME="quartz-demo"
VERSION="0.0.1-SNAPSHOT"
DOCKER_IMAGE="${APP_NAME}:${VERSION}"
NAMESPACE="quartz-namespace"

# Build the application
echo "Building the application..."
./gradlew clean build

# Generate Docker image
echo "Building Docker image..."
docker build -t ${DOCKER_IMAGE} .

# Clean up Kubernetes deployment
echo "Cleaning up Kubernetes deployment..."
kubectl delete -f k8s/quartz-demo-configmap.yaml -n ${NAMESPACE}
kubectl delete -f k8s/quartz-demo-service.yaml -n ${NAMESPACE}
kubectl delete -f k8s/quartz-demo-deployment.yaml -n ${NAMESPACE}
kubectl delete -f k8s/quartz-demo-pv.yaml -n ${NAMESPACE}
kubectl delete namespace ${NAMESPACE}

# Apply Kubernetes configurations
echo "Deploying application to Kubernetes..."
kubectl create namespace ${NAMESPACE}
kubectl apply -f k8s/quartz-demo-configmap.yaml -n ${NAMESPACE}
kubectl apply -f k8s/quartz-demo-pv.yaml -n ${NAMESPACE}
kubectl apply -f k8s/quartz-demo-service.yaml -n ${NAMESPACE}
kubectl apply -f k8s/quartz-demo-deployment.yaml -n ${NAMESPACE}

echo "Deployment complete."

Testing:

Once build script is executed, 2 instances would be running. Below snapshot of logs shows same job is not executed 2 instances. Jobs execution is load balanced.

Sample log:

2025-03-28T06:59:00.006Z  INFO 1 --- [-demo_Worker-10] c.s.l.q.Q.scheduled.OneMinuteJob         : Executing OneMinuteJob at 2025-03-28T06:59:00.006097128Z
2025-03-28T07:00:05.766Z  INFO 1 --- [z-demo_Worker-1] c.s.l.q.Q.scheduled.ThirtySecondJob      : Executing ThirtySecondJob at 2025-03-28T07:00:05.766212130Z

Conclusion:

In this article, we learned a simple, easy hands-on related to integrating Quartz framework with Spring boot.

Find the respective code over the GitHub.

References:

https://github.com/quartz-scheduler/quartz/blob/main/docs/introduction.adoc
