Implementing Time-Bound Event Access: A Case Study with Solace Platform (Part 3 of 3)

TL;DR

This article demonstrates how to implement time-bound event access using Solace Platform's Rest Delivery Point (RDP). We explore a proof-of-concept called SolPass that automates the creation of event access windows and enables API-like subscription models in event-driven architectures.

The Hybrid Approach: Solace RDP
Implementing Time-Bound Access with RDP
SolPass: A Proof-of-Concept Implementation
Real-World Applications
Implementation Considerations
Conclusion: Bridging Worlds

In our previous articles, we explored the challenge of implementing controlled, time-bound access in event-driven architectures and examined various approaches to addressing this gap. Now, let's look at a concrete implementation using Solace Platform's Rest Delivery Point (RDP) feature, which elegantly bridges the event-driven and REST worlds.

The Hybrid Approach: Solace RDP

Solace Platform offers a powerful feature called Rest Delivery Point (RDP) that implements the hybrid REST/Event bridge approach we discussed previously. RDP enables event-driven systems to deliver messages to REST-based consumers, creating an ideal foundation for implementing time-bound event access.

What is Solace RDP?

RDP bridges the gap between event-driven systems and REST-based applications by:

Enabling delivery of real-time events from Solace queues to REST endpoints
Allowing HTTP/REST consumers to participate in an event-driven ecosystem
Providing reliable, ordered event delivery through queue-based persistence
Decoupling event sources from REST consumers

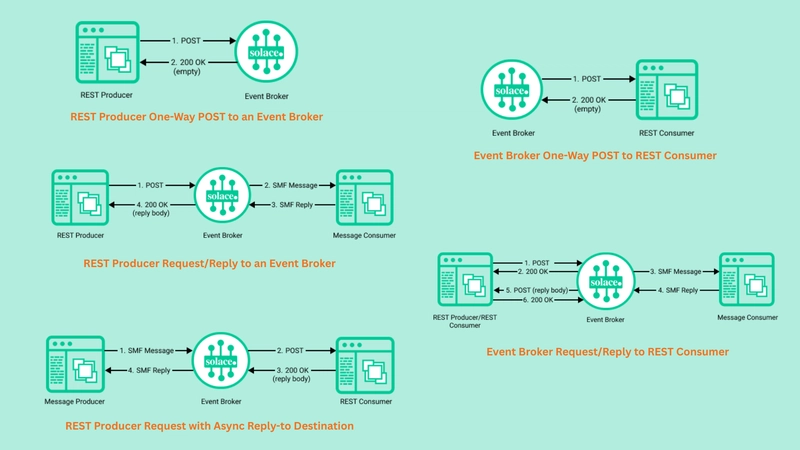

Message Exchange Patterns

REST Producer One-Way POST to an Event Broker - REST clients publish messages to the event broker by sending HTTP POST requests to a broker URL that specifies the destination endpoint (queue/topic). The broker handles the message based on the specified delivery mode.
Event Broker One-Way POST to REST Consumer - The event broker delivers messages to REST endpoints by sending HTTP POST requests to configured REST consumers. This pattern uses Rest Delivery Points (RDPs) to bridge from messaging to REST consumers.
REST Producer Request/Reply to an Event Broker - REST clients send request messages with a reply-to header and the broker routes the request to a consumer. When a reply is generated, the broker delivers it back to the REST client that's waiting for a response.
Event Broker Request/Reply to REST Consumer - The broker sends a request message to a REST consumer as an HTTP POST with correlation information. The REST application processes the request and returns a reply in the HTTP response, which the broker delivers back to the original requestor.
REST Producer Request with Asynchronous Reply-to Destination - A REST client sends a request but specifies a separate destination for the reply rather than waiting synchronously. This allows decoupling of the request and response handling for better scalability.

These patterns provide flexible integration options between REST-based applications and event-driven systems, which aligns perfectly with the theme of your blog series on bridging API and event-driven architectures.

Implementing Time-Bound Access with RDP

The key innovation in our approach is implementing time-bound access control through dynamic subscription management:

The Three-Step Process:

At start time: Topic subscriptions are added to a queue, enabling event flow to REST endpoints
At end time: Subscriptions are removed, stopping new events while retaining queue configurations
Retention period: Events persist in the queue for a defined period, allowing delayed consumption

This model effectively creates event access windows that control real-time data flow similar to API subscription tiers.

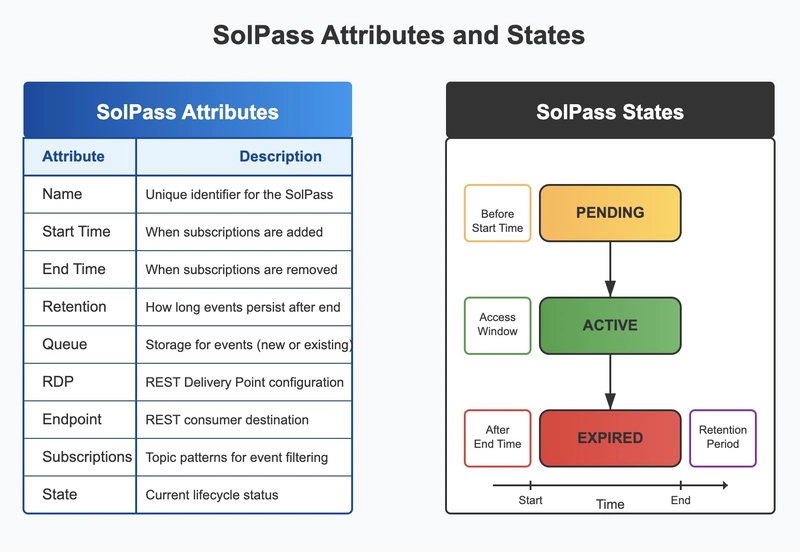

SolPass Attributes & States

SolPass: A Proof-of-Concept Implementation

To demonstrate this concept in action, we've developed SolPass—a prototype tool that automates the setup and management of time-bound RDPs. SolPass simplifies this process through an intuitive interface that handles everything from provisioning to retention management.

Key Features of SolPass

SolPass implements a three-step process for time-bound event access:

1. RDP Setup

Create or reuse an existing queue
Configure client profiles for access control
Apply specified topic subscriptions
Create an RDP bound to the selected queue
Register target REST endpoints as consumers

2. Dynamic Subscription Control

At start time: Add topic subscriptions to enable event flow
At end time: Remove subscriptions to stop new events
Maintain queue and RDP configuration for future reuse

3. Retention & Delivery Assurance

Keep unconsumed events available until retention period expires
Clear stored events after retention period ends
Enable offline consumers to access events when they reconnect (within the retention window)

SolPass Interface and Management

SolPass provides an intuitive user interface for managing time-bound event access:

SolPass enables administrators to:

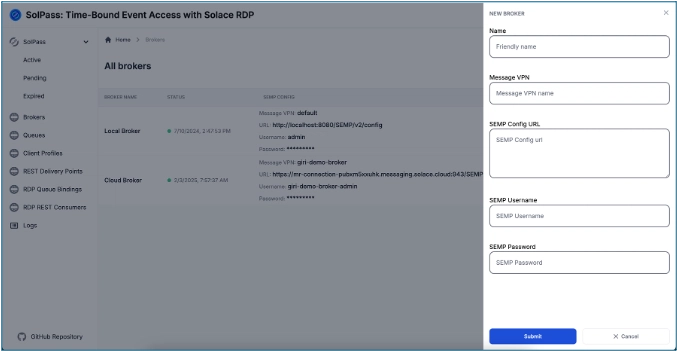

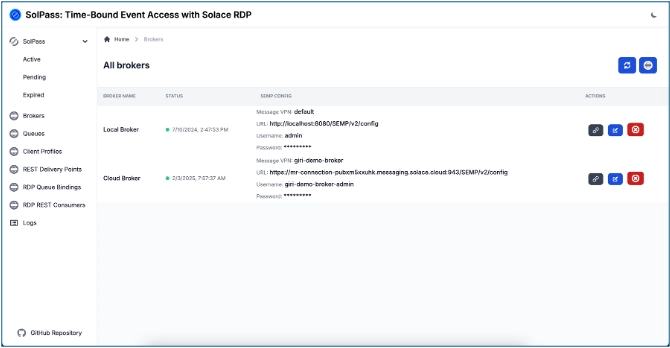

Register and View Broker Connections: Connect to Solace brokers for creating and managing passes

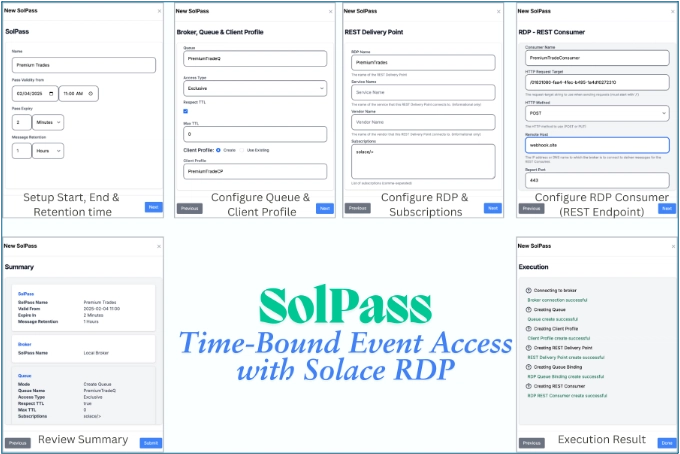

Create New SolPasses: A wizard-driven interface for creating time-bound access windows

View SolPass Status: Track active, pending, and expired passes

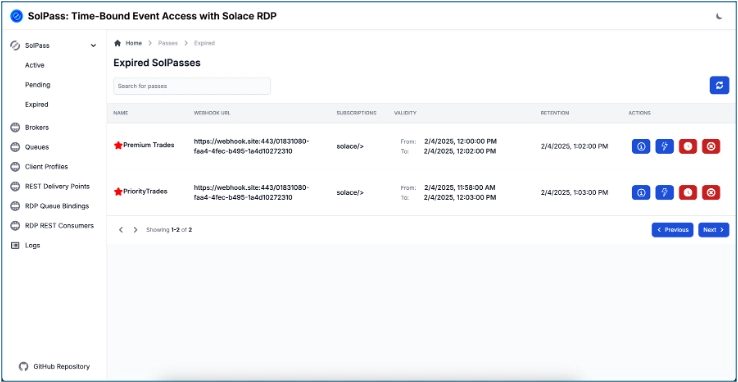

SolPass management interface showing active, pending, and expired passes

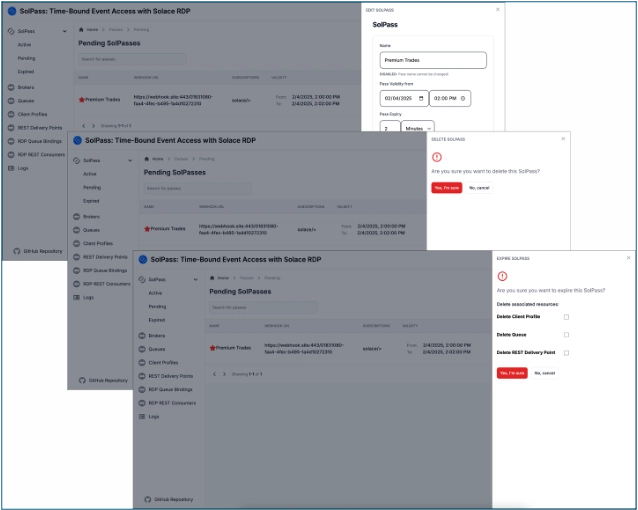

Manage SolPasses: Modify start/end times, retention periods, or forcefully expire active passes

Monitor Resources: View brokers, queues, client profiles, RDPs, and REST consumers

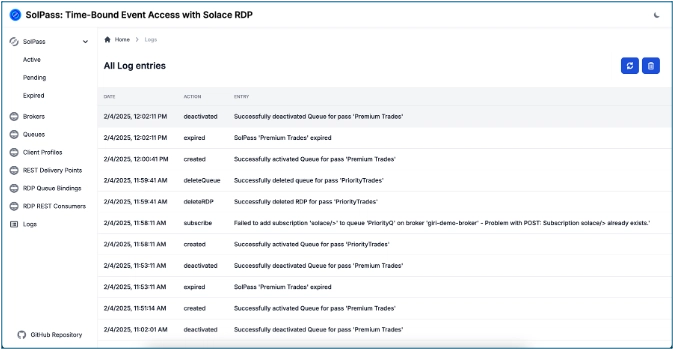

Review Activity Logs: Track all operations for auditing and troubleshooting

Implementation Architecture

SolPass leverages the Solace SEMP API to automate the entire process, from creating queues and configuring RDPs to managing topic subscriptions. The architecture ensures that events flow only during the specified time window, with configurable retention for reliable delivery.

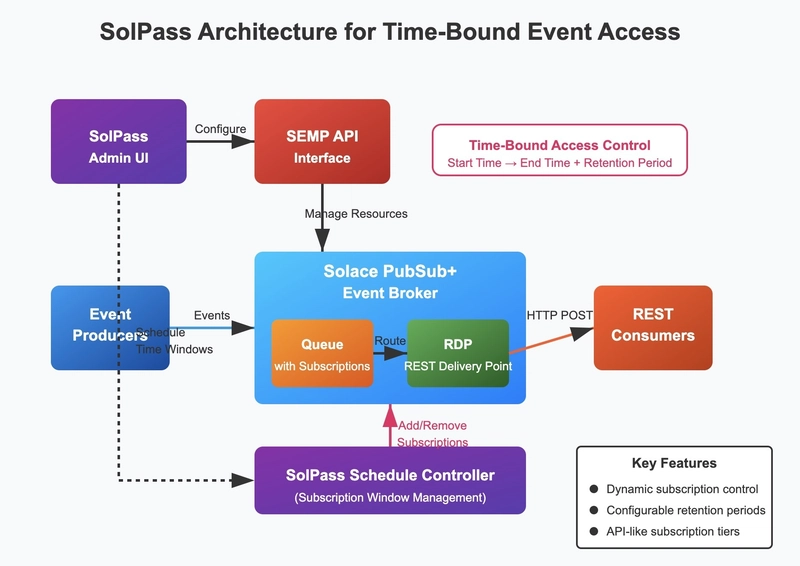

SolPass architecture showing integration with Solace messaging platform

Exploring the SolPass Repository

For readers interested in examining or contributing to the SolPass proof-of-concept, the complete source code is available in a public GitHub repository at https://github.com/gvensan/solpass.

This repository contains all the components needed to implement time-bound event access using Solace Platform RDP that can work with a local or cloud Solace Broker.

The codebase includes:

The SolPass administration UI for creating and managing time-bound access windows
Integration with the Solace SEMP API for broker configuration
The scheduling engine that handles automatic subscription management
Sample configuration templates and examples

The code provides a foundation to adapt to your specific requirements when implementing time-bound event access in their event-driven architectures.

Feel free to fork the repository, explore the implementation details, and contribute improvements that could benefit the broader community working on bridging the gap between API-based subscription models and event-driven architectures.

Real-World Applications

This approach to time-bound event access opens up numerous possibilities across industries:

1. Media Companies Offering Sports Updates

Provide real-time event feeds only for the duration of specific games
Create "day pass" or "game pass" subscription tiers
Monetize event streams through controlled access windows

2. Financial Market Data Distribution

Offer tiered access to market data (real-time vs. delayed)
Provide temporary access to premium data feeds
Control access to updates from specific exchanges

3. E-Commerce Flash Sales

Stream real-time product availability only during sale windows
Automatically end updates when sales conclude
Implement different retention policies for different event types

4. IoT Sensor Data Access

Grant temporary access to maintenance teams during service windows
Stream real-time telemetry only to authorized personnel
Automatically revoke access when maintenance periods end

5. Government & Emergency Alert Systems

Provide controlled access during emergency situations
Stream updates on weather patterns, traffic, or evacuation routes
Limit unnecessary data flow after crisis resolution

Implementation Considerations

Performance Impact

Testing shows minimal performance impact from dynamic subscription changes. The Solace broker efficiently handles subscription modifications without disrupting message flow to other consumers.

However, at extremely high volumes or with many concurrent subscription changes, you should consider staggering the modifications to avoid any temporary impact on broker resources.

Security Aspects

This approach enhances security by ensuring events only flow during authorized time windows. Additionally, standard Solace authentication and authorization mechanisms apply to both the queue and REST delivery points.

For production implementations, consider:

Using certificate-based authentication for REST endpoints
Implementing IP allowlisting for additional security
Regular rotation of credentials for service accounts

Scaling Considerations

The solution scales with Solace Platform, supporting thousands of time-bound subscriptions across distributed broker environments.

For large-scale deployments:

Implement a database backend for SolPass to track subscription state
Consider a clustered deployment for high availability
Monitor queue depths and adjust retention policies accordingly

Monitoring and Management

SolPass includes logging and status monitoring, but production implementations should integrate with enterprise monitoring systems for comprehensive visibility.

Key metrics to monitor include:

Queue depths for time-bound subscriptions
Event delivery latency to REST endpoints
Subscription addition/removal performance
REST endpoint availability and response times

Conclusion: Bridging Worlds

By leveraging Solace RDP with dynamic subscription control, organizations can introduce API-like consumption models to event-driven architectures, enabling:

Controlled event consumption windows for flexible access models
Retention policies ensuring reliable delivery even for intermittently connected consumers
Simplified bridge between API-driven access patterns and continuous event streaming

This approach doesn't just solve a technical challenge—it enables new business models, enhances compliance capabilities, and creates more sophisticated event-driven ecosystems. The gap between API subscription models and event-driven architectures can now be bridged, bringing the best of both worlds together.

While SolPass serves as a proof-of-concept prototype not intended for production use, it demonstrates the viability and power of this approach. Organizations can adapt these principles to their specific needs, potentially extending the concept with additional features like usage metering, automated billing integration, or sophisticated retention policies.

The future of event access control is here—combining the real-time power of event-driven architectures with the flexible subscription models of API-based systems.

Have you implemented time-bound access in your event-driven systems? What challenges did you face? Share your experiences in the comments
