Infrastructure as Code: Building a Custom Network & EC2 with user data script with Terraform.

As a Cloud Solution Architect trainee, learning Infrastructure as Code (IaC) became a key priority for scaling and automating cloud environments. This week, I built and deployed a custom AWS network using Terraform—all from my local machine with VS Code. In this post, I’ll walk you through how I created a VPC, public subnet, internet gateway, route table, and launched an EC2 instance that served a static website using a user data script.

Whether you're just starting with Terraform or need a clear beginner use case, this is a friendly walkthrough of using Terraform and VS Code to launch infrastructure on AWS. Let’s dive in!

Project Summary
I used Terraform to automate:

Building a custom VPC
Creating a public subnet
Launching an EC2 instance with a user data script
Hosting a static website with Apache

Prerequisites
Before diving into this project, you should have:
Basic knowledge of AWS services (EC2, VPC, Subnets, Security Groups)

Terraform installed and configured
AWS CLI installed and configured with IAM credentials
A code editor like VS Code(with Terraform extension)
Familiarity with Linux commands
AWS account

The main components are:

A VPC with public and private subnets
A Security Group to allow HTTP/SSH access
An EC2 Instance with Apache and a custom HTML page deployed using user_data

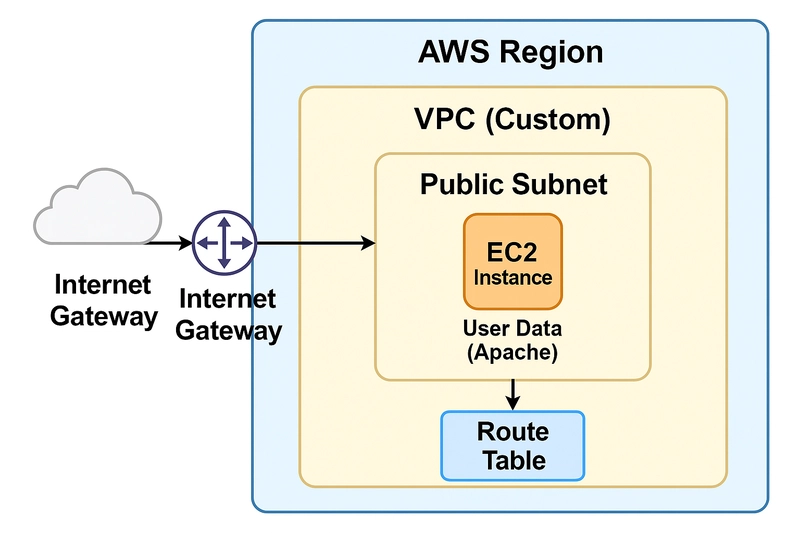

Architecture Overview

Folder Structure

terraform-project/
├── main.tf
├── provider.tf
├── user_data.sh
├── terraform.tfstate
├── terraform.lock.hcl

Configure AWS provider in provider.tf

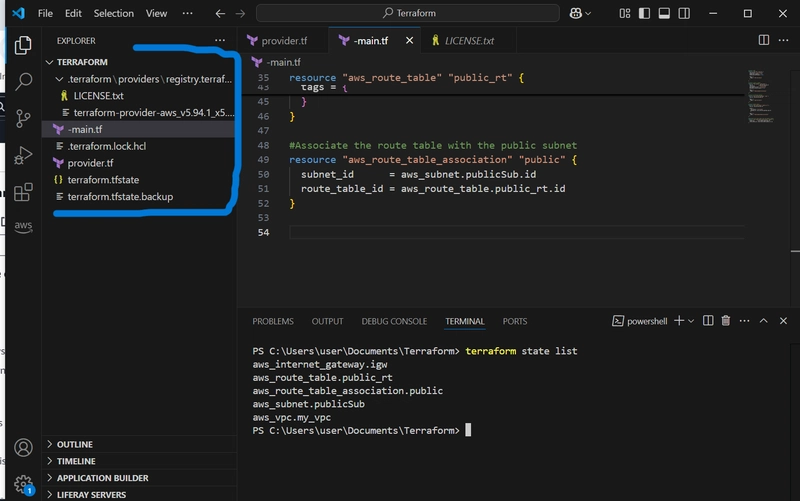

Build resources in main.tf: VPC, subnet, IGW, route table, EC2 instance
Use the user data script in user_data.sh to automate Apache installation.

Deploy with:

terraform init
terraform plan

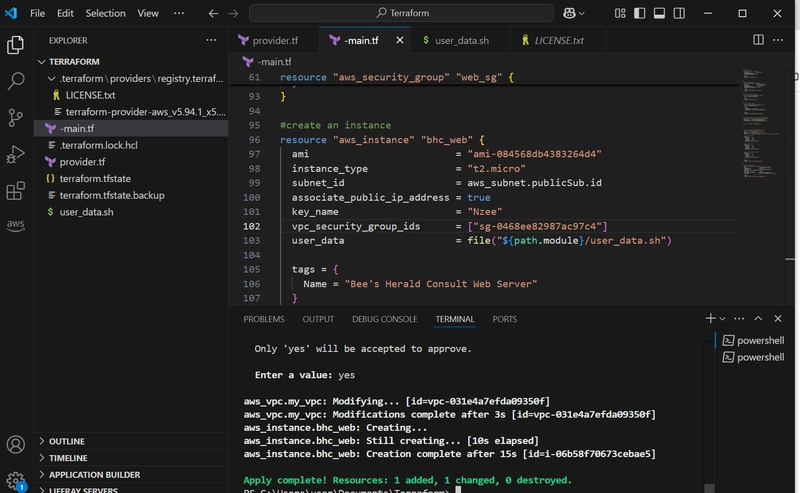

terraform apply

Components

VPC: A custom Virtual Private Cloud to logically isolate my resources.
Public Subnet: One subnet within the VPC, configured to host public-facing resources.
- Internet Gateway (IGW): To allow internet access into the VPC.
- Route Table: Associated with the subnet to enable traffic routing through the Internet Gateway.
- EC2 Instance: A virtual machine launched into the subnet, configured via a user data script to automatically install Apache and serve a static website.

How It All Connects

The VPC is the main network boundary.
Inside it, I created a public subnet.
An Internet Gateway is attached to the VPC.
A Route Table is created with a default route (0.0.0.0/0) pointing to the Internet Gateway and associated with the subnet.
An EC2 instance is launched in the public subnet.
A user data script runs on the instance at launch, installing Apache and copying my static website files.
The instance is reachable via its **public IP **because:
- It’s in a public subnet.
- It has a public IP association enabled.
- The Security Group allows HTTP access on port 80.

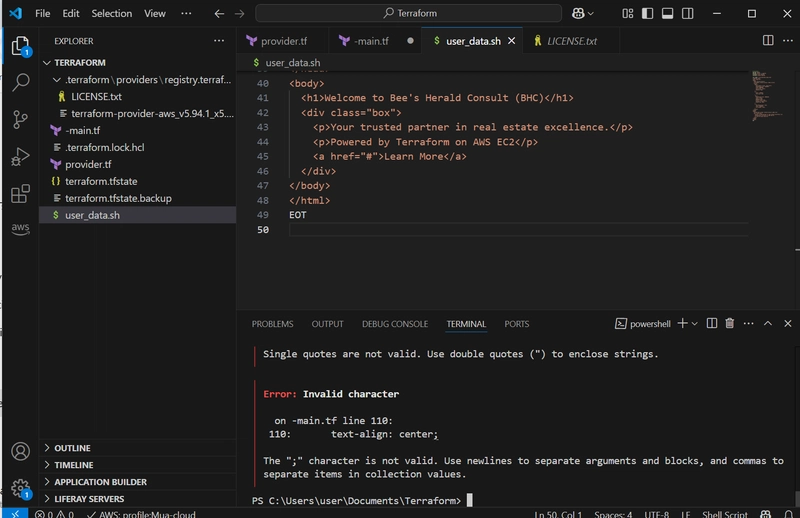

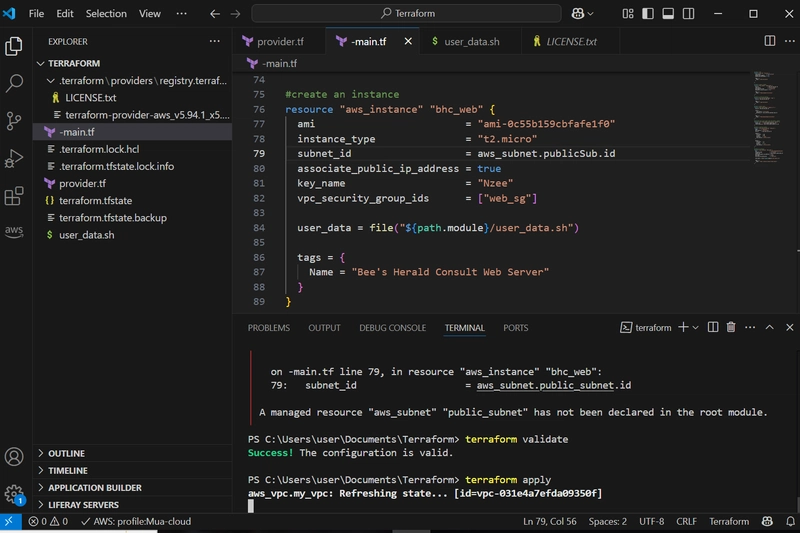

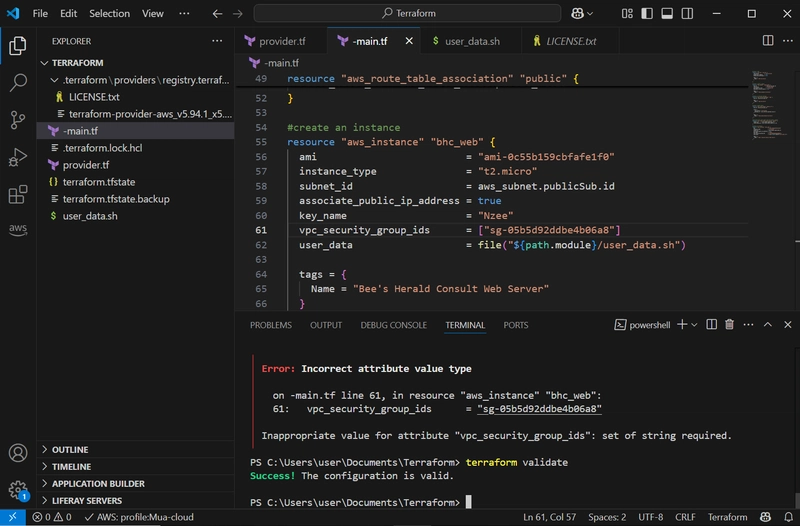

Troubleshooting Errors:

I got so many errors from my scripts, but I didn't give up, I kept trying

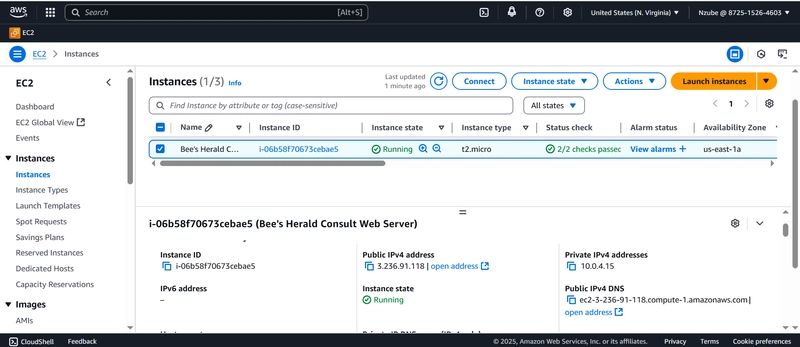

I checked the console, and my instance was running. did the same when I built a custom network.

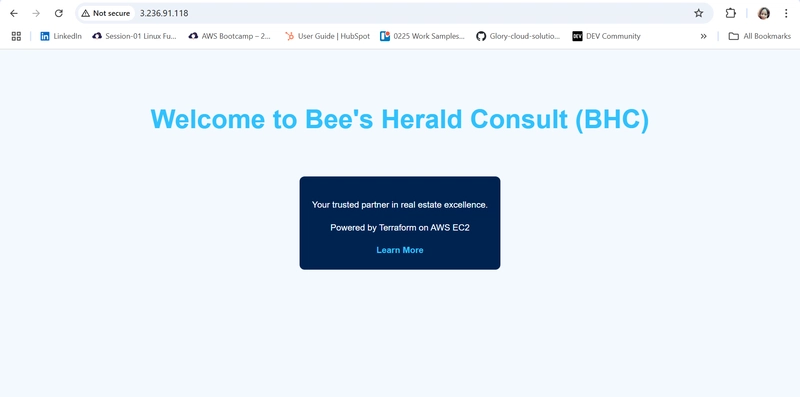

And here's the result

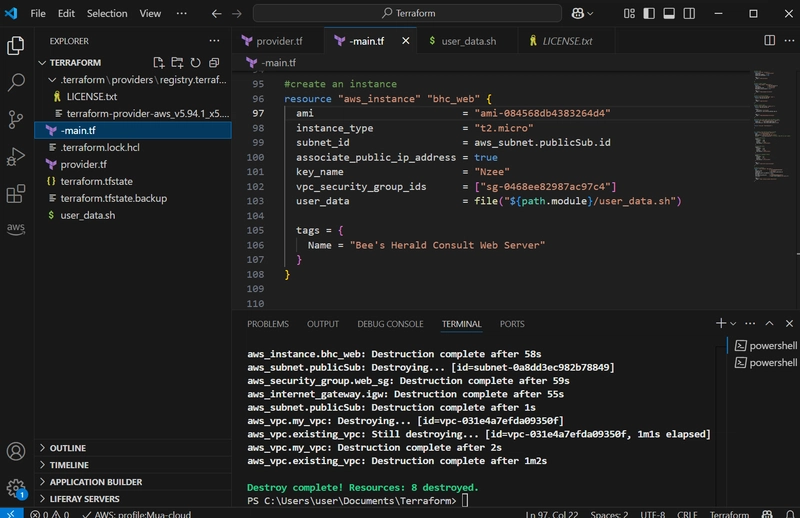

Cleaning Up
If you want to avoid AWS charges:
terraform destroy

What I Learned

How to set up infrastructure using code
How to work with user data scripts for automation
How to break a project into modular files
How powerful and addictive Infrastructure as Code can be.

What’s Next?
I'll expand this by:

Creating a private subnet.
Launching EC2 in a private network.
Creating and associating a NAT Gateway.
Using Elastic IP for NAT.
Automating more with modules.

Conclusion
This was my first hands-on Terraform project, and it gave me real insight into the power of infrastructure as code (IaC). Being able to provision a complete environment with a few files and commands felt like magic and was less intimidating. Every challenge helped me grow, and I can’t wait to complete the rest of the architecture.
If you're just starting, try building a similar setup and share your experience. Feel free to drop questions or thoughts in the comments!"
