Anatomy of a Github Copilot Extension in Golang

Hi there! I'm Shrijith Venkatrama, founder of Hexmos. Right now, I’m building LiveAPI, a tool that makes generating API docs from your code ridiculously easy.

Did you know that you can build your own custom extensions to augment Github Copilot's capabilities?

For example, I've always wanted a Copilot extension to talk to my PostgreSQL databases with a query like this from my VSCode:

@dbchat List all the users with firstname, lastname and email

And let the AI compose an SQL query, interact with my DB, and return a neatly formatted table.

With Copilot Extensions something like that is totally within reach.

In this post though - we will focus on something more mundane - we will try to learn the structure of a sample Copilot extension.

A RAG Extension in Golang

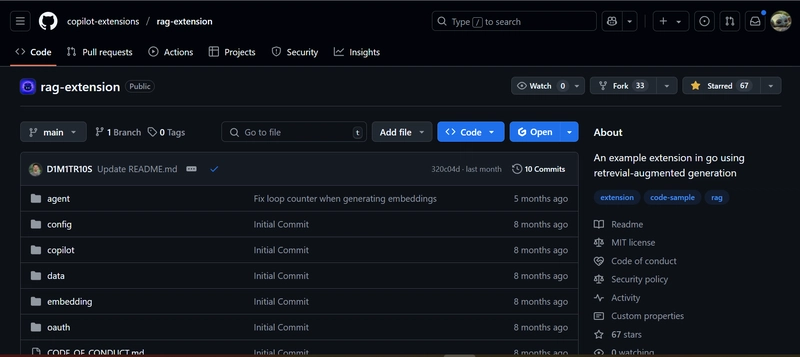

Github provides a sample repository - demonstrating Copilot extension capabilities in the copilot-extensions/rag-extension.

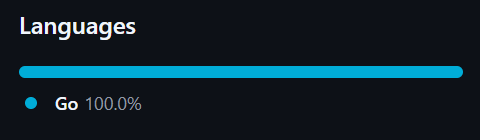

It is purely built based on Golang, so I'm a bit extra interested because I'm enjoying Golang a lot these days:

Folder Structure

Here is the entire structure of the project at a glance:

rag-extension/
├── CODE_OF_CONDUCT.md
├── LICENSE.txt
├── README.md
├── SECURITY.md
├── SUPPORT.md
├── agent
│   └── service.go
├── config
│   └── info.go
├── copilot
│   ├── endpoints.go
│   └── messages.go
├── data
│   ├── app_configuration.md
│   ├── payload_verification.md
│   ├── request_format.md
│   └── response_format.md
├── embedding
│   └── datasets.go
├── go.mod
├── go.sum
├── main.go
└── oauth
    └── handler.go

6 directories, 18 files

We have 4 markdown files in data folder - the source from which RAG is supposed to happen.

There's also a config component.

Other than these, we have 3 components of interest:

agent
copilot
embedding

We will get into a high level understanding of each of these components first.

Agent Service: Orchestrate Embedding and Chat Completion

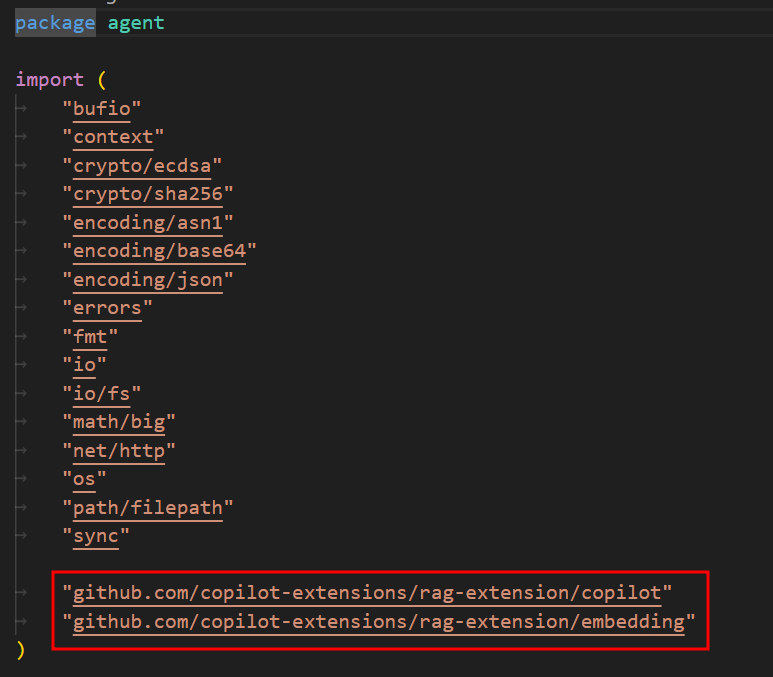

First thing to notice here is that the Agent component is a sort of an orchestrator for copilot and embedding components, since they depend on agent:

The component does a lot of assorted things such as some sort of Signature verification (security), Data validation (security, user experience), Streaming responses, Error handling, etc.

Apart from these tasks, the module does two other super important things:

Dataset management: : Lazily loads and generates embedding datasets from files in a data directory, using a singleton pattern to avoid redundant work.
Contextual Chat Completion: For each user message, it creates an embedding, finds the most relevant dataset, and uses its content as context for generating a chat completion.

Dataset Management

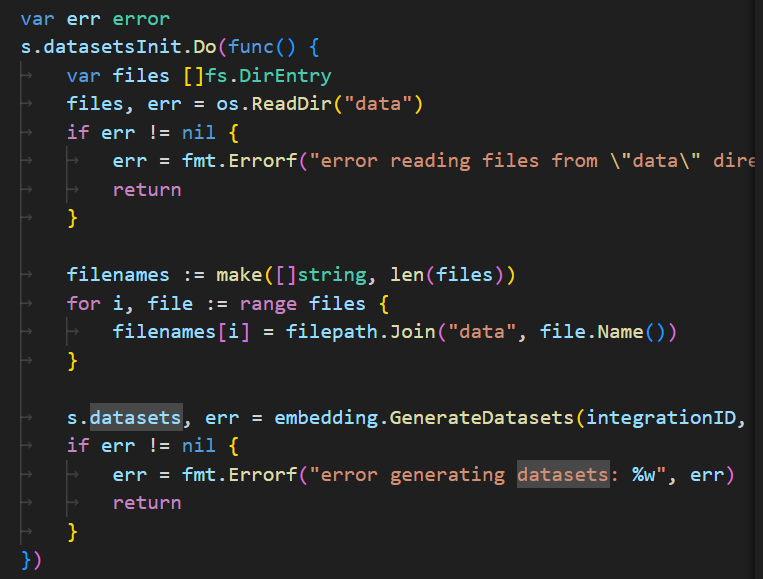

The first things we do is, populate the datasets attribute, with embeddings of the docs in data folder:

Contextual Chat Completion

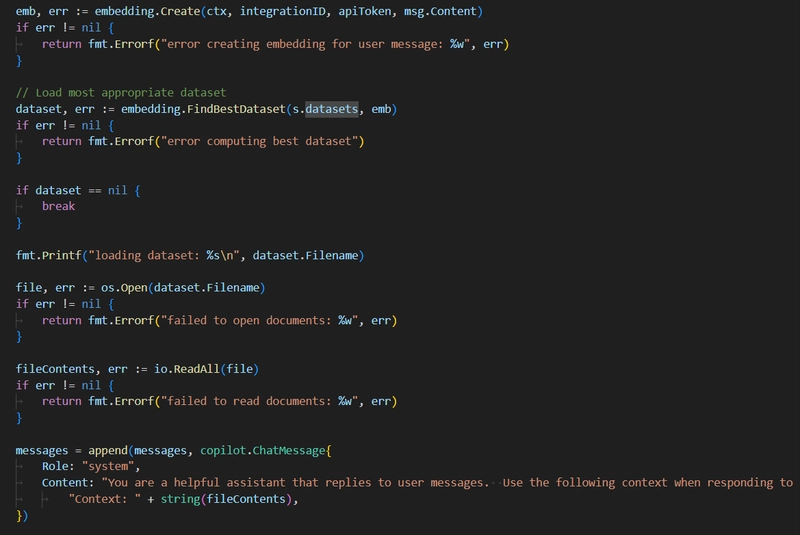

In the chat completion task, all we do is:

calculate embedding for incoming message
compare to the embedding dataset from previous section
find best match
return it as context for helping the user-facing LLM formulate a response

ChatCompletion Mechanism

The file copilot/endpoints.go is what provides the key ChatCompletions mechanism.

ChatCompletions
- Sends a chat completion request to the GitHub Copilot API.
- Serializes the request (ChatCompletionsRequest) to JSON.
- Builds an HTTP POST request to https://api.githubcopilot.com/chat/completions with appropriate headers (including authorization and optional integration ID).
- Executes the request and checks for a successful (200 OK) response.
- If successful, returns the response body as a stream (io.ReadCloser) for the caller to process incrementally.
- If not successful, prints the error response and returns an error.
Embeddings
- Sends a request to generate embeddings via the GitHub Copilot API.
- Serializes the request (EmbeddingsRequest) to JSON.
- Builds an HTTP POST request to https://api.githubcopilot.com/embeddings with required headers (authorization, content type, and optional integration ID).
- Executes the request and checks for a successful (200 OK) response.
- If successful, decodes the JSON response into an EmbeddingsResponse struct and returns it.
- If not successful, prints the error response and returns an error.

How they work:

Both functions use Go’s http.Client to send HTTP POST requests.
They marshal the request payload to JSON and set necessary headers.
They handle HTTP errors by printing the response body and returning a formatted error.
ChatCompletions returns a streaming response for incremental reading, while Embeddings decodes the full response into a Go struct.

Embedding Component

The file embedding/datasets.go is what enables most of the embedding capabilities. It consists of following:

Create
- Takes a context, integration ID, API token, and content string.
- Calls the copilot.Embeddings API to generate an embedding vector for the content.
- Returns the embedding as a slice of float32, or an error if the API call fails or returns no data.
Dataset struct
- Holds an embedding vector and the filename it was generated from.
GenerateDatasets
- Takes an integration ID, API token, and a list of filenames.
- Reads each file, generates an embedding for its content using the Create function.
- Returns a slice of Dataset pointers, each containing the embedding and filename, or an error if any file or embedding fails.
FindBestDataset
- Takes a slice of Dataset pointers and a target embedding vector.
- Computes cosine similarity between the target and each dataset's embedding.
- Returns the Dataset with the highest similarity score, or an error if embedding lengths mismatch.

What Next?

So we have arrived at a very high level summary of how a sample Github Copilot Extension works in this post. I will be going into further details of each of these modules in the upcoming posts. Stay tuned!
