Essential Hardware for Your First Electronics Project (Beginner's Guide)

Intro: What Gear Do I Actually Need for Electronics?

Jumping into electronics? Awesome! But the list of potential parts and tools can seem endless. If you're wondering, "What's the minimum hardware I need to buy to start building stuff?", you're in the right place.

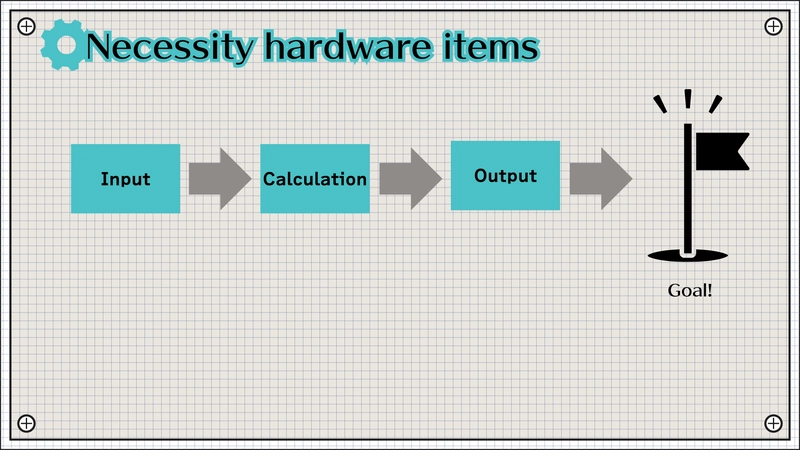

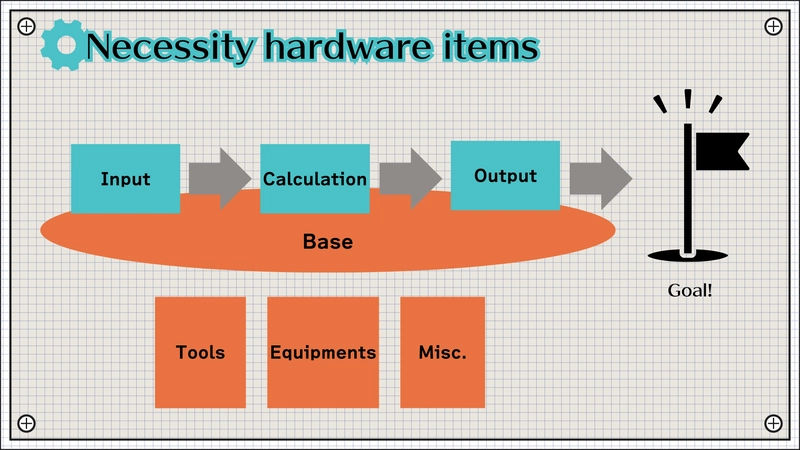

We can simplify this by thinking about the typical flow: Input -> Calculation -> Output. Let's break down the necessary hardware based on this flow and the essential support items.

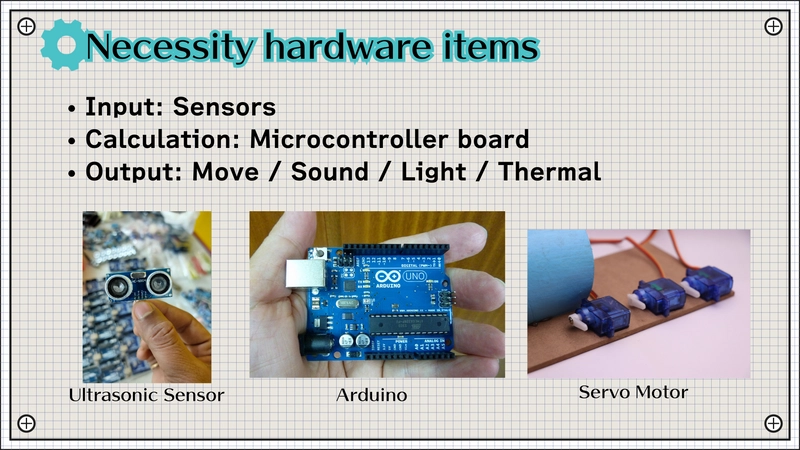

Chapter 1: The Core Project Trio

Most beginner projects involve these three functional blocks:

1. Input Devices (Sensors)

These components sense the real world.

Purpose: Get data (light level, temperature, distance, button press).
Examples: Photoresistors, DHT11/DHT22 temp/humidity sensors, HC-SR04 ultrasonic sensors, push buttons.
Why: Lets your circuit react to its environment.

2. Calculation (Microcontroller Boards - The Brain)

This processes the input and decides what to do.

Purpose: Run your code, make decisions.
Examples: Arduino Uno/Nano, Raspberry Pi Pico, ESP32/ESP8266.
Why: Provides the intelligence for your project.

3. Output Devices (Actuators & Indicators)

These act on the world based on the microcontroller's commands.

Purpose: Provide feedback or perform an action (light, sound, motion).
Examples: LEDs, small DC motors, servos, buzzers, LCD displays.
Why: To show the result of your project's logic.

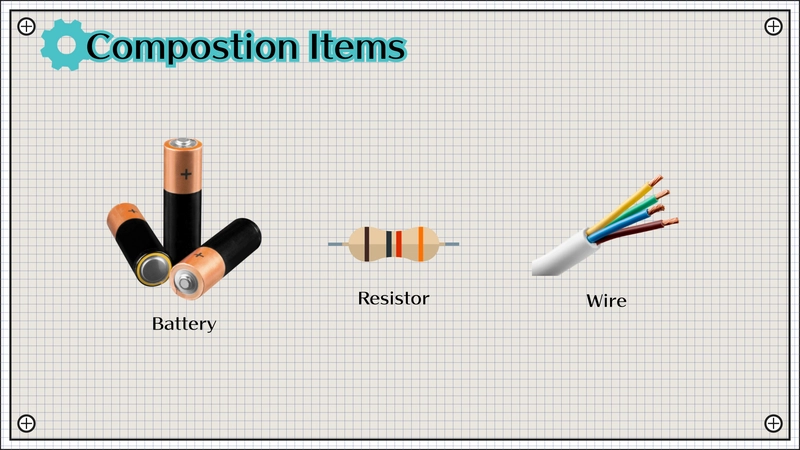

Chapter 2: The Foundation - Power & Basic Components

You can't build a circuit without these basics:

Power Source: Need to make the electrons flow!
- Options: Battery pack (e.g., 4xAA), 9V battery clip, USB power bank, dedicated 5V/3.3V power supply module for breadboards.
Jumper Wires: Essential for connecting components without soldering.
- Types: Male-to-Male, Male-to-Female, Female-to-Female. Get an assortment.
Resistors: Critical for controlling current and voltage.
- Why: Protect LEDs, act as voltage dividers, pull-up/pull-down resistors. Start with a kit of common values (e.g., 220Ω, 1kΩ, 10kΩ).

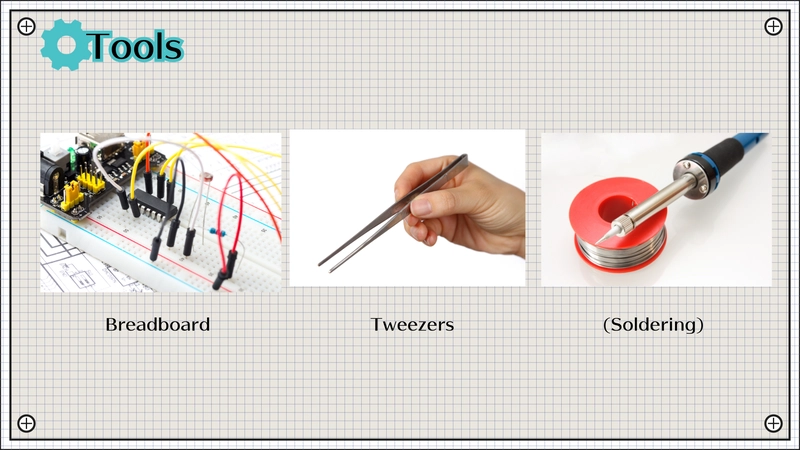

Chapter 3: Essential Prototyping Tools

These tools make building and testing much easier:

Breadboard: Non-negotiable for beginners. A solderless way to quickly build and modify circuits. Components plug right in. Get at least one standard-size (e.g., 830 point) board.
Tweezers: Handling tiny resistors, capacitor legs, and wires is much easier with tweezers. You don't need expensive ones.
Soldering Iron (Not Yet!): While essential for permanent circuits, stick to the breadboard first. Master the basics without the heat and fumes. You'll know when you're ready to make things permanent.

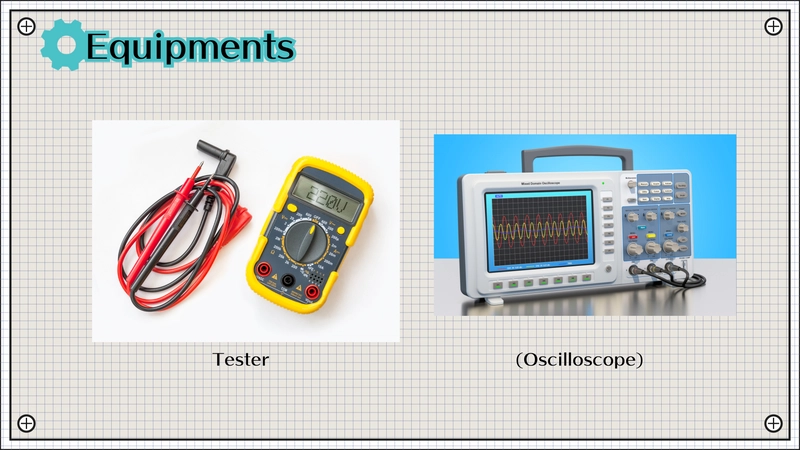

Chapter 4: Debugging Gear - Finding Problems

Things won't always work the first time. This tool is key:

Multimeter: Your primary troubleshooting tool.
- Measures: Voltage (DC/AC), Current (DC/AC), Resistance, Continuity (checking connections - often has a beep!).
- Why Essential: Helps answer questions like "Is this component getting power?", "Is this wire broken?", "Is this the right resistor value?". Get a basic digital multimeter (DMM).
Oscilloscope (Advanced): Visualizes electrical signals over time. Powerful, but overkill for most beginners. More expensive and complex. Start with the multimeter.

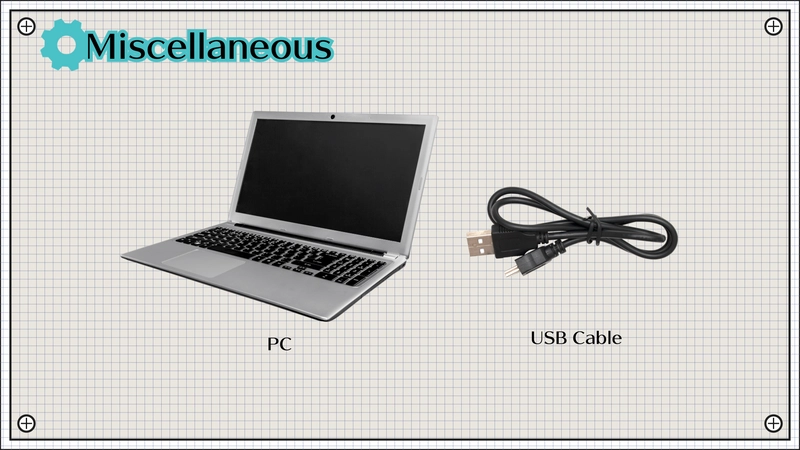

Chapter 5: Programming Your Microcontroller

You need a way to write and upload your code:

PC/Laptop: Where you'll write your code using an IDE (like Arduino IDE, PlatformIO in VS Code, Thonny for MicroPython).
USB Cable: Connects your microcontroller board to the PC for power (often) and code transfer. Make sure you get the right type for your board (e.g., USB-A to USB-B for Arduino Uno, USB-A to Micro-USB or USB-C for others).

Chapter 6: Summary - Your Starter Hardware Checklist

Focus on getting these items first:

Microcontroller: An Arduino Uno/Nano or Raspberry Pi Pico is a great start.
Input/Output: A starter kit often includes basic sensors (button, photoresistor), LEDs, and maybe a small motor or buzzer.
Foundation: Breadboard, jumper wires, basic resistor kit, power source (battery pack or USB cable if board supports it).
Tools: Tweezers, Multimeter.
Programming: Your existing PC/Laptop, the correct USB cable for your chosen board.

With this setup, you're well-equipped to tackle your first electronics projects!

Happy Building!
